Lastdelekontakt Siemens 3LD54200TK11

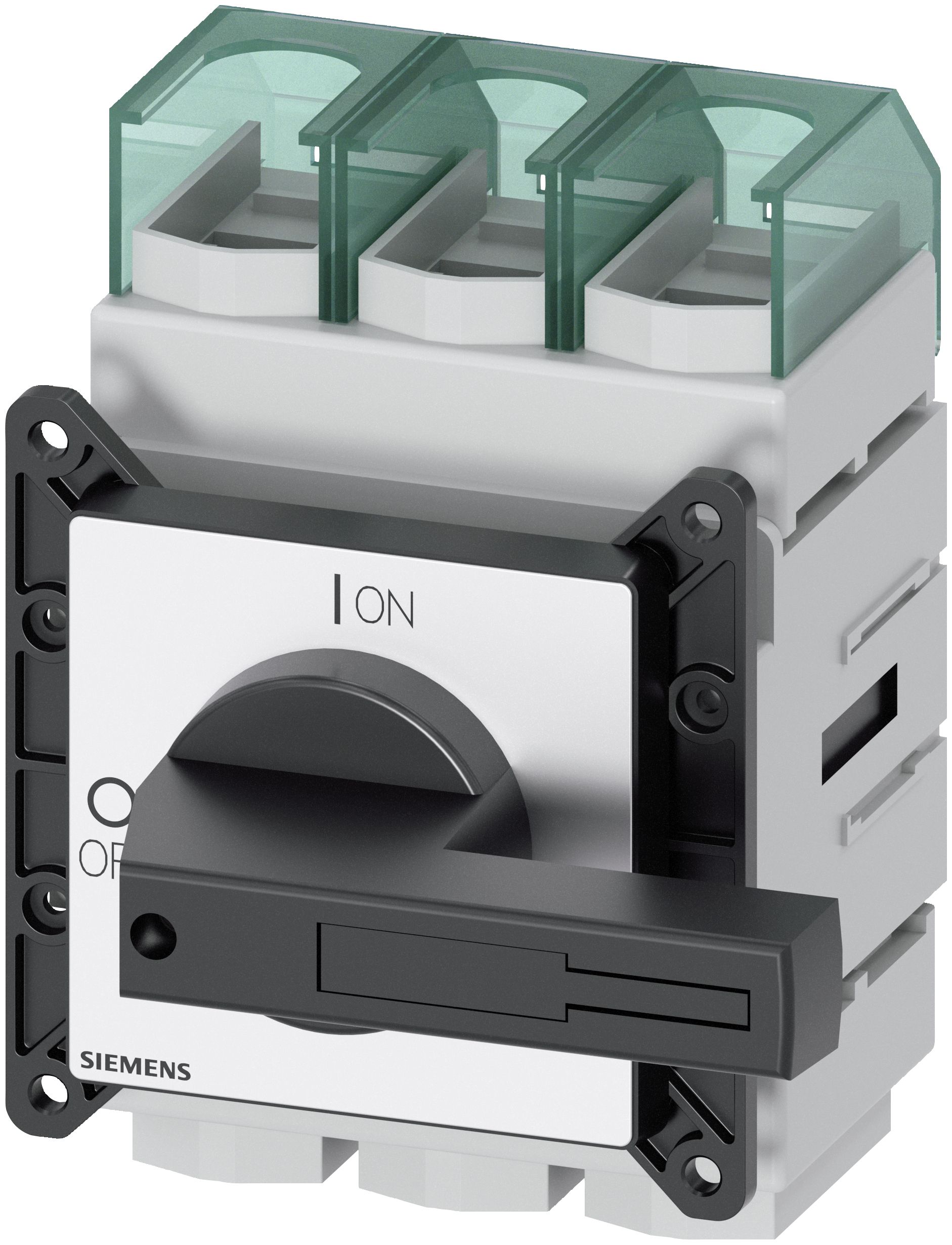

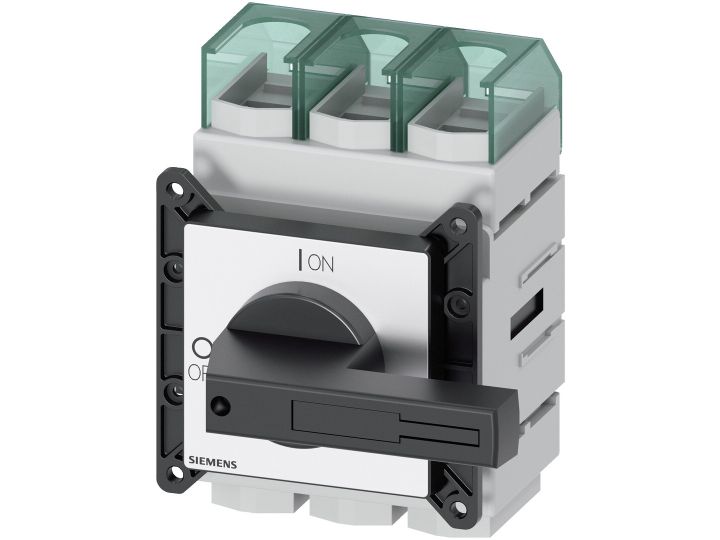

SENTRON 3LD5 switch disconnector UL, main switch, 3-pole, approved according to UL 489, UL 60947-4-1 and IEC 60947-3, UL: 100 A, SCCR 65 kA at 480 V AC, operational power @ 480 V AC 3-phase: 60 hp, IEC: 100 A, operational power at AC-23 A at 400 V: 45 kW, front-mounted: rotary operating mechanism, black, 4-hole mounting of the handle, including terminal covers for the infeed side infeed side Switch disconnector SENTRON 3LD5 for the safe shutdown of loads in many areas of industrial machinery on the US market. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4th pole. Optimum disconnection of 16 A of 160 A from the power supply due to the locking capability of the rotary operating mechanism. Versatile thanks to international approvals. Due to certification according to UL489, ideal for export to NAFTA states. Due to the large number of accessories, the 3LD5 is particularly suitable as a main disconnector. It can also be used as a manual motor control system because it is also certified according to UL60947-4-1. The 3LD main and EMERGENCY-OFF switches are available in a wide range of variants for front mounting, mounting plate, DIN rail, or installation in distribution boards, optionally with direct or door-coupling rotary operating mechanism. 3LD2 is also available in variants for DC applications. Main and EMERGENCY-OFF switch 3LD - End-to-end safety for users and systems.
