Aten KVM-konsoll 17" LCD 16 x SPHD,1U, nordisk tastatur

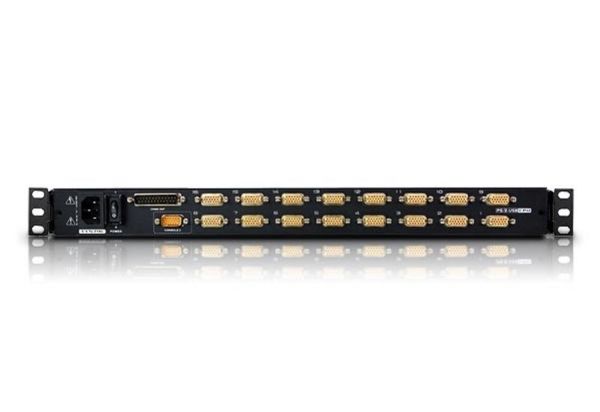

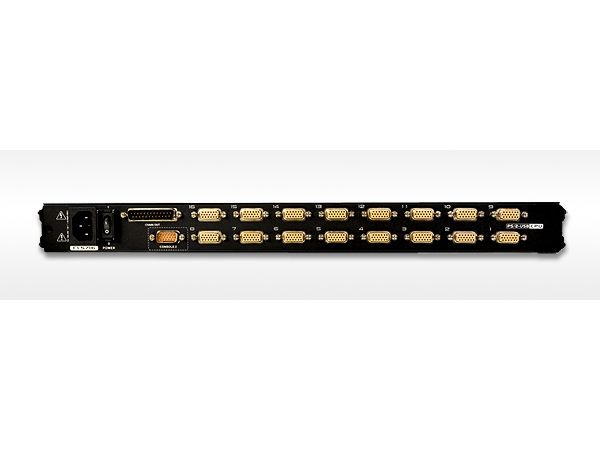

The CL5716M Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716M can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716M, so that up to 512 computers can all be controlled from a single KVM console.

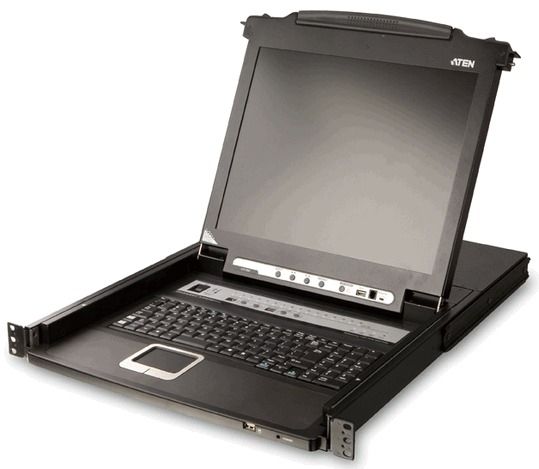

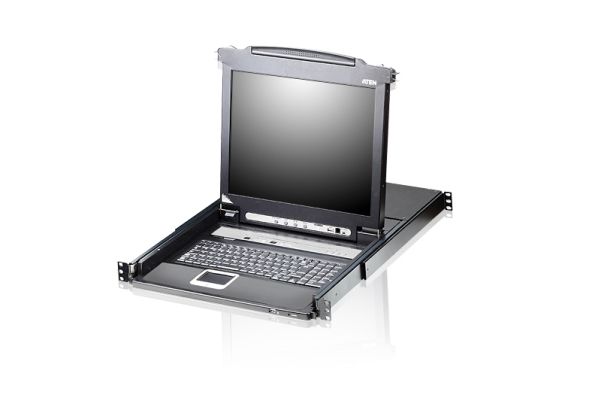

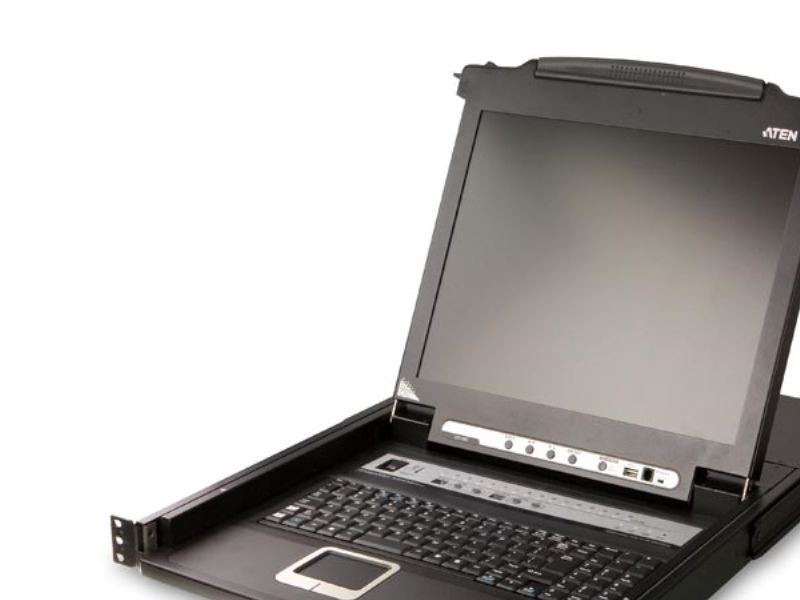

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

Features:

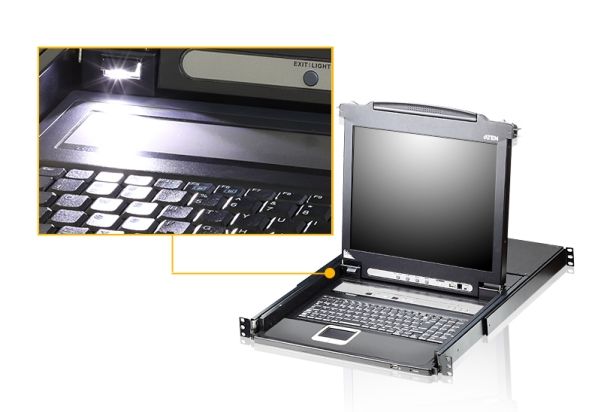

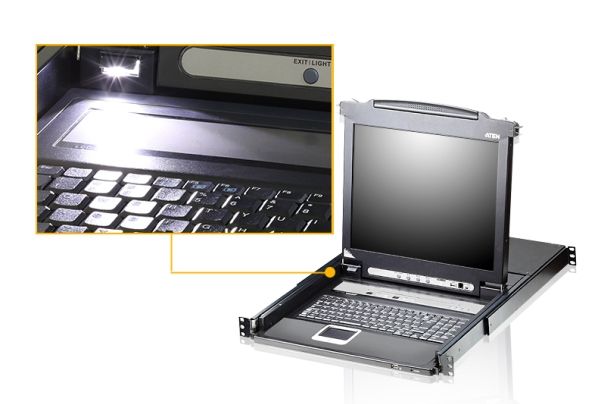

-Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
-Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
-Available with or without Fingerprint Identification Reader**
-Space saving technology - up to two consoles (one bus) control up to 16 computers

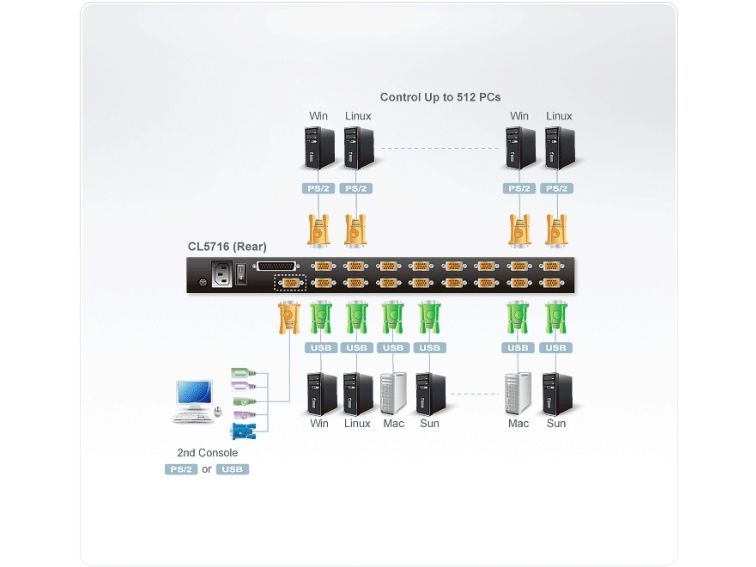

-Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A)
-Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
-LCD module USB port allows each computer to access USB peripherals*
-LCD module rotates up to 115 degrees for a more comfortable viewing angle
-Multiplatform support – Windows, Linux, Mac, and Sun
-Supports multimedia USB keyboards for PC, Mac and Sun
-Auto PS/2 and USB interface detection
-Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
-Supports external USB mouse
-Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
-No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
-Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
-Port names automatically reconfigured when station sequence is changed
-Two level password security - only authorized users can view and control computers
-Supports one administrator and four user accounts with separate profiles
-Auto Scan mode enables continuous monitoring of user-selected computers
-Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
-Hot pluggable - add or remove computers without having to power down the switch
-Beeper on/off via hotkey and OSD
-Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
-Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
**The fingerprint reader can be used as an alternate means of logging in to the switch. From 1 to 4 fingers can be scanned for each user and the administrator, with any one of the recorded fingerprints used to log in.

Package Contents
1x CL5716 KVM Switch with standard Rack Mount Kit
2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
1x Firmware Upgrade Cable
1x Power Cord (6ft.)
1x Grounding Wire (4ft.)
1x User Manual
1x Quick Start Guide
