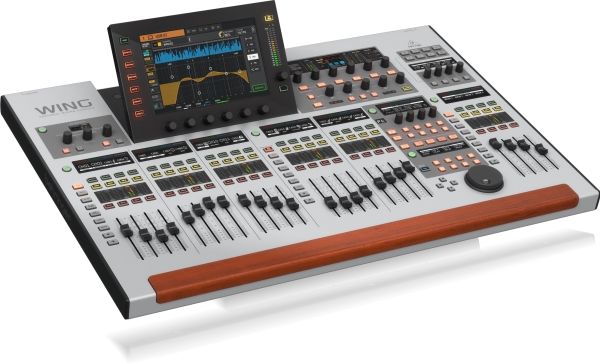

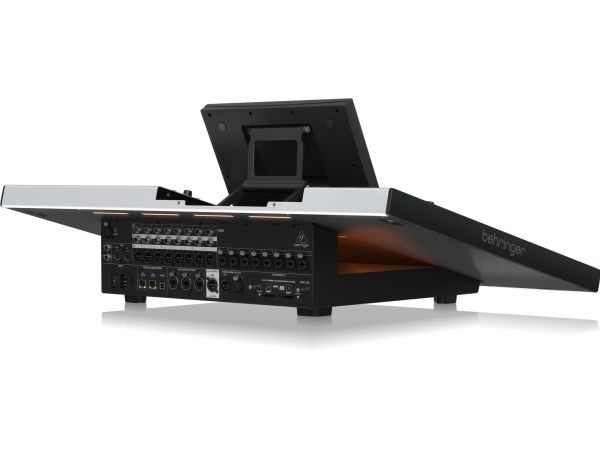

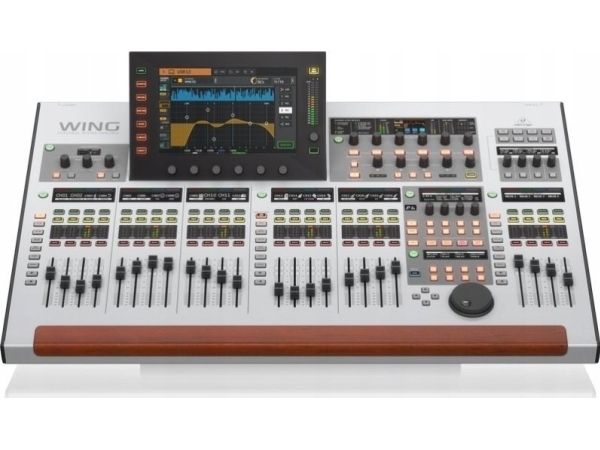

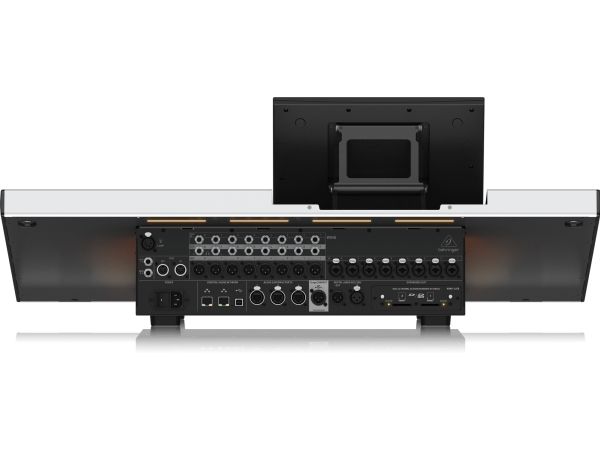

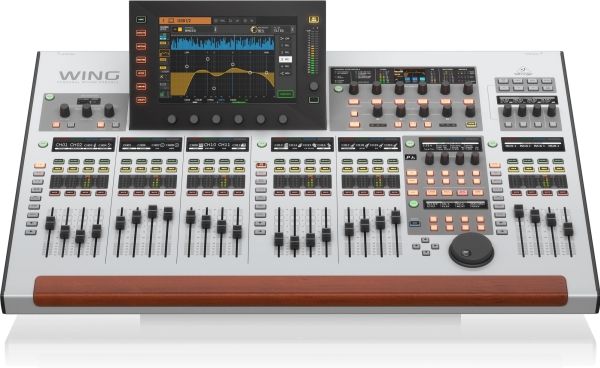

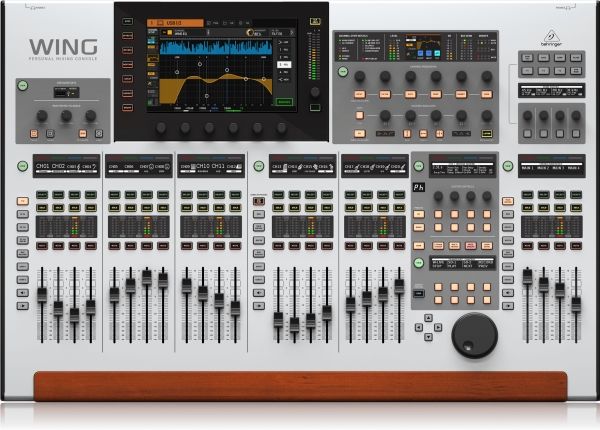

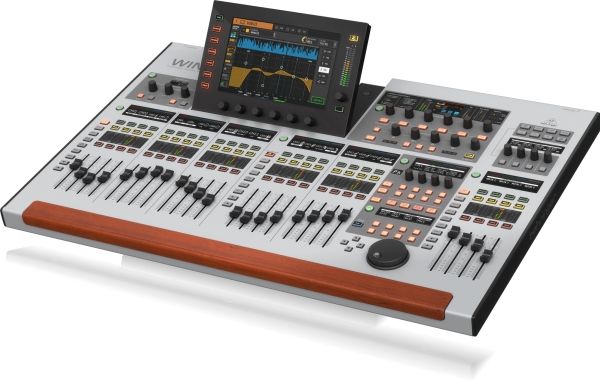

The Personal Mixing Console The WING control surface utilizes a large capacitive touchscreen interface with touch-sensitive rotary controls for a new ease of operation. Three separate fader sections and a Custom Controls section can be tailored easily and intuitively to meet your personal requirements. No matter if you need a specific bus send fader next to the corresponding channel fader, or a dedicated “money” channel always at your fingertip, or even sharing the surface with two engineers - WING can be configured to elevate your production to a new level. You can even replace and customize the massive wooden armrest with something funkier if you like. The technical drawing can be found in the Downloads section of the product page.
Why Sources? What is the purpose of mixing in the first place? While considering the signal path of audio production for live or studio applications, we were stunned to find that much of the terminology is still driven by historical technical implementation, rather than its actual purpose. Normally, consoles focus on input numbers assigned to channels and auxes. WING is offering a substantially different perspective by focusing on the Source as the reason for any mixing, say a bass drum signal or the lead vocal. Inputs are therefore given more properties than just a number. Sources can be in mono, stereo or mid-side mode, own headamp parameters like gain and phantom power, with specific source mute and metering. They can also be given a color, icon, name and several tags for grouping and filtering purposes. All of this describes the actual Source first, before channels are used for processing or mixing.
The beauty of this is that you can label Sources using our WING Co-Pilot app while patching on stage and no matter if the signal is patched to a channel, to SD recording or to any other output, you will always see and refer to that Source.
Mono/Stereo All 48 input channels and 28 bus mixes can be used for mono, stereo or mid-side sources. Assigning a stereo source to any channel automatically renders the channel stereo, and its stereo imager stage provides control over width from 150% stereo down to mono. The console does not need a reboot to apply any mode changes. Their channel, bus and subgroup configuration can be changed any time on the fly. See why it is a WING?
Antall kanaler
48 kanaler
Prøvehastighet
48 kHz
Frekvensrekkevidde
10 - 20000 Hz
Inngangsimpedans
40000 O
Utgangsimpedans
75 O
Innebygd skjerm
Ja
Display
LCD
Berøringsskjerm
Ja
AUX-inngang
Ja
XLR utgang
16
DJ mixer
Ja
Videofunksjon
Nei
Mikrofonens frekvensrespons
10 - 20000 Hz
Produktfarge
Sølv
Strømforbruk (vanlig bruk)
130 W
AC-inngangsspenning
100 - 240 V
AC-inngangsfrekvens
50/60 Hz
Bredde
870 mm
Dybde
575 mm
Høyde
201 mm
Vekt
24 kg
Produktet har følgende varenummer i vårt system:
EAN:
4033653071307
SKU:
000-BV201-00010
