Omron E3Z-LS86

E3Z-LS Distance Settable Sensors
The E3Z-LS range of photoelectric sensors are compact in design with a built in amplifier. E3Z-LS distance settable sensors are unaffected by colour or background whilst able to detect minute steps.
Simple positioning settings using a clear LED spot
Distance setting by 5 turn endless adjuster
Load power supply voltage: 26.4 Vdc max
Load current: 100 mA max
Open collector output
Reversed power supply polarity protection, Output short-circuit protection, Mutual interference prevention
IP67 rated

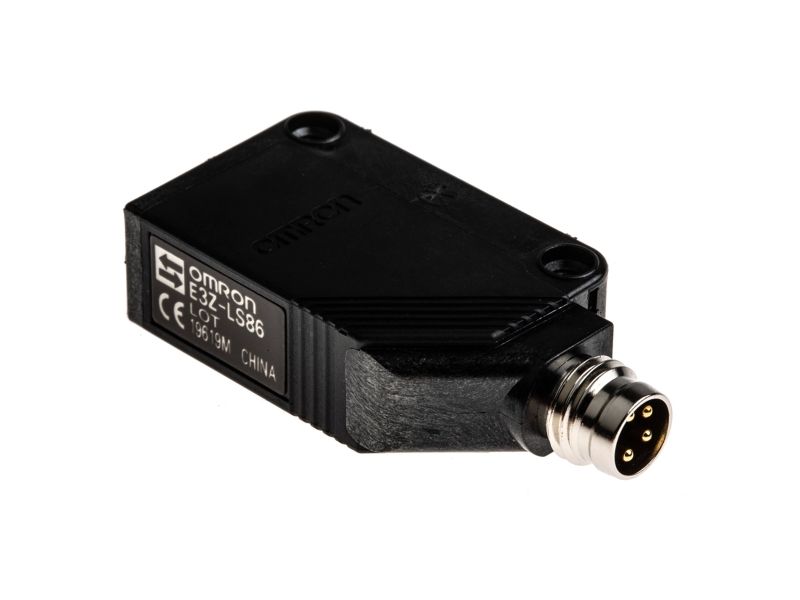

OMRON Distance Sensor, IP67 Rating, PNP Output Type - E3Z Series - E3Z-LS86
Ensure your processes go the distance with this photoelectric sensor from OMRON. It has a built-in amplifier to detect objects at distances between 20 and 200mm, so it's ideal for use with conveyor systems. Background suppression means the sensor focuses its attention on moving items rather than the conveyor belt itself. This nifty function also helps it identify height differences in your targets. The detection distance and a choice of dark-on and light-on operating modes are selectable via a switch on the housing, so you benefit from speedy configuration. As the device is suitable for bracket and post-mounting, you'll have no trouble getting it into the right position.
Features & Benefits
PBT housing for strength and resistance to wear and impacts
Quick 1ms response time to handle fast-paced production lines
Uses an industry-standard M8 connector for convenience
Measures 31 (L) x 10.8 (W) x 20mm (D), so it doesn't need a lot of space
Applications
Industrial automation
Packaging systems
Paper mills
Parcel depots
Can I use this distance sensor in harsh conditions?
Yes. This unit has an IP67 rating, meaning it's dust-tight and resistant to temporary immersion in water.
