Efficient media converter for easy network migration from copper to fiber
Supports 10 Gb/s transmission rate for high network performance
Link Fault Pass Through (LFP) function for easy maintenance
Low power consumption and stable performance over long periods of time
Plug-and-play solution for easy installation

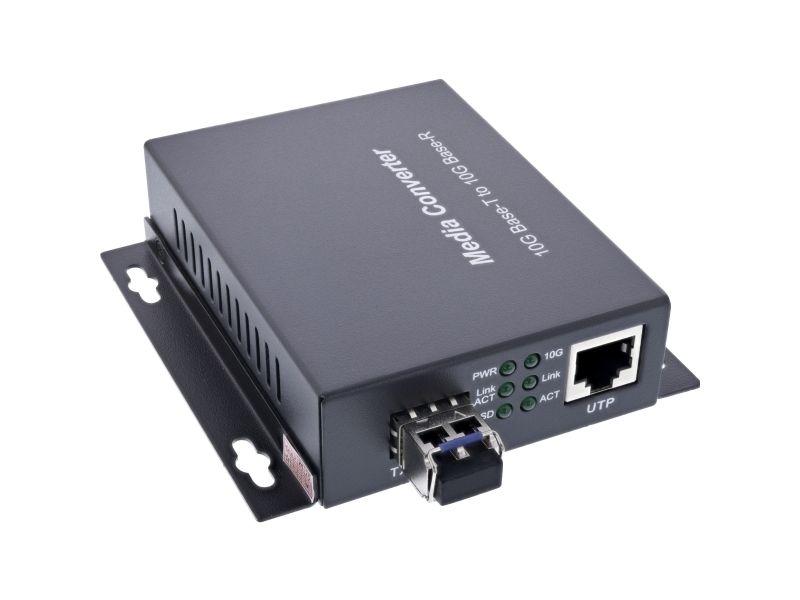

The InLine® Network Media Converter enables cost-effective migration or expansion of existing networks by converting electrical copper signals into optical fiber signals. This allows networks with a range of up to 10 km to be connected via single-mode fiber optics.
Equipped with an integrated high-performance core, broadcast storm control and IEEE 802.3x flow control, this converter ensures a stable and reliable network connection. The integrated CRC error check optimizes signal quality and minimizes data loss. The media converter also offers a Link Fault Pass Through (LFP) function to facilitate maintenance work and detect network errors at an early stage.

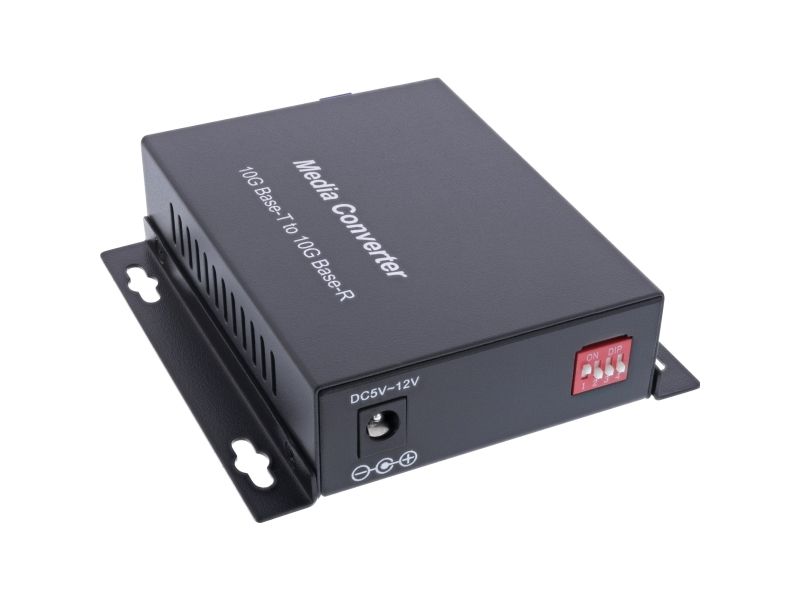

The compact design with an RJ45 port for twisted pair connections and an SFP port for fiber optics makes the device flexible to use. Thanks to its low heat generation and low power consumption, the converter ensures long-lasting and interference-free operation.
Technical specifications:
Supported transmission rates:
Twisted Pair: 10/100/1000 Mb/s (10/100/1000Base-T), 2.5/5/10 Gb/s (2.5/5/10GBase-T)
Fiber: 10 Gb/s (10GBase-R)
Maximum transmission distance: 10 km (single-mode fiber)
Wavelength: 1310nm
UTP port: twisted pair RJ45 socket
Fiber connection: SFP module port
Status LEDs for connection monitoring
Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Humidity: 5% - 80%, non-condensing
Dimensions: approx. 94 x 93.3 x 26 mm (incl. mounting brackets)
External plug-in power supply: 12 V DC/1 A
Scope of delivery:
1x InLine® network media converter with mounting brackets

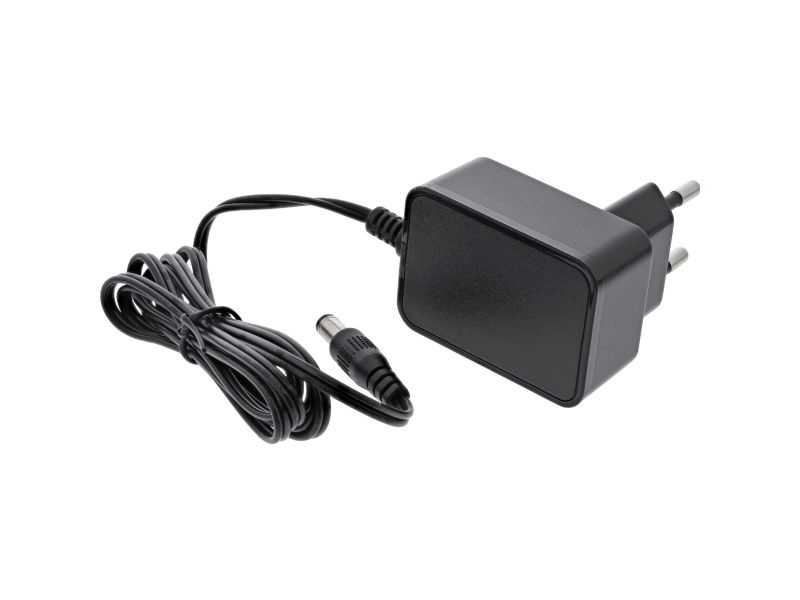

1x plug-in power supply 12 V DC / 1 A
1x 4-pack of screws & wall plugs
1x instruction manual (German / English)
Pre-installed SFP module
