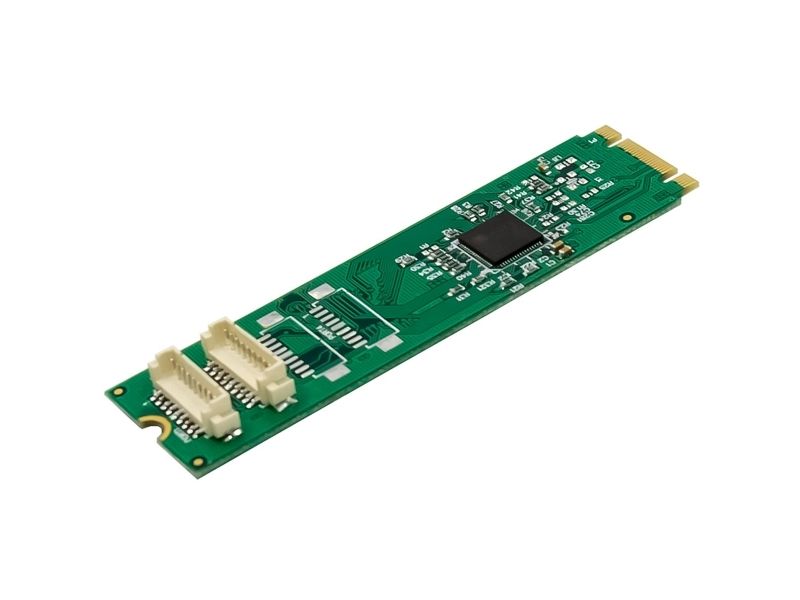

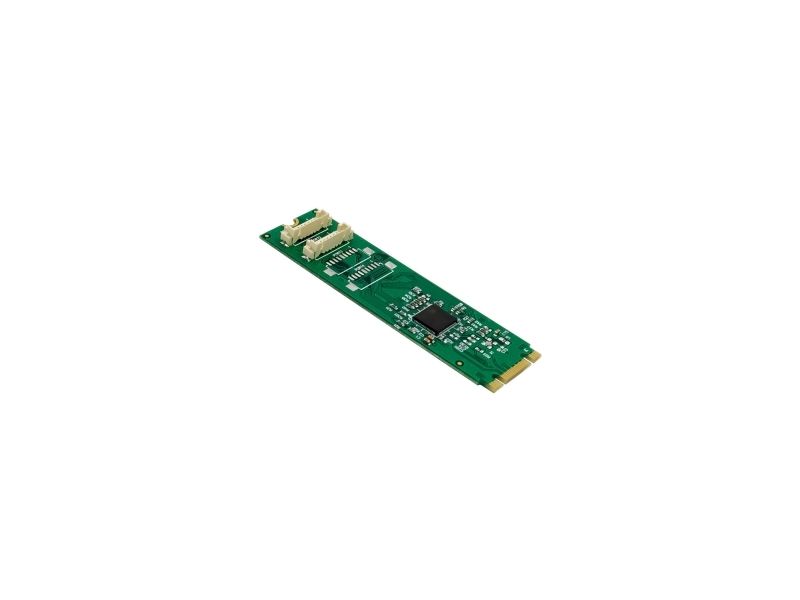

InLine-grensesnittkort M.2 til 2x seriell 9-pinners kontakt (76660X)
Varenr.: [24316653] | Producent: Inline | Model-nr.: 76660X | EAN: 4043718341627
Fjernlager
Varen er på fjernlager, leveringstiden er 6-8 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
59,00
Bring – Leveres til pakkeboks nær deg
59,00
Bring – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
862,00
eksklusiv MVA 689,60
Totalt inkl. frakt
921,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
Compact M.2 to 2x RS-232 converterfor serial applications
PCIe 2.0 interface (5 GT/s)for reliable and fast data transmission
Integrated ASIX AX99100 controllerwith support for 16C950 UART compatibility
Two DB9-9pin serial portsfor industrial and serial communication applications
Onboard LED indicatorto display the operating activity
No additional driver required

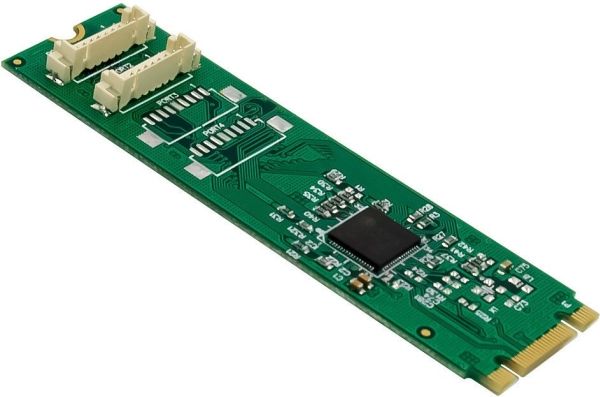

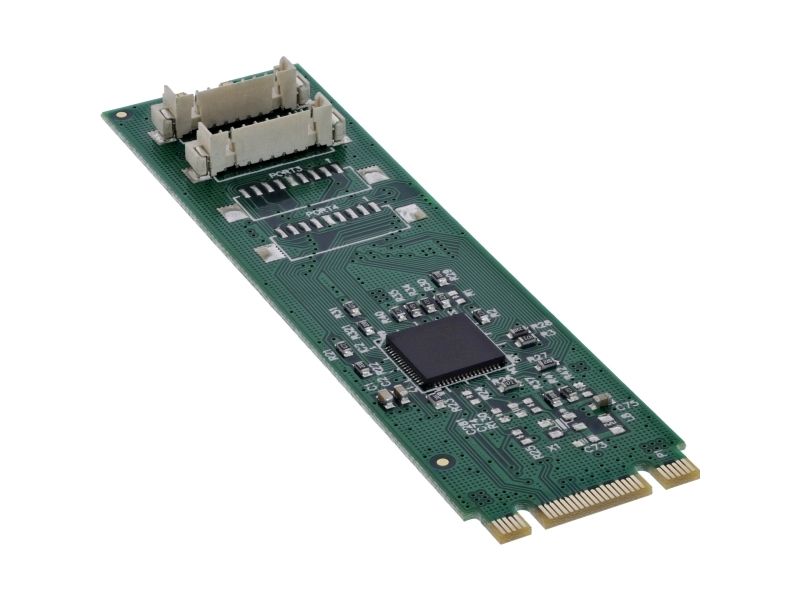

The InLine® interface card M.2 to 2x serial 9pin connectoroffers a compact and powerful solution for expanding a system with two serial RS-232 DB9 interfaces. The adapter uses a PCIe 2.0 interface (5 GT/s)and integrates the ASIX AX99100 controller, which is compatible with 16C950 UART to enable reliable and flexible serial communication.
With a maximum transmission rate of up to 1 Mb/s, the card is ideal for industrial applications, embedded systems and serial control devices. The automatic detection of the lane configuration ensures seamless system integration.
Power is supplied directly via the M.2 slot (3.3 V), so no additional power connection is required. Two low-profile slot bracketsare included for flexible use of the card in different housings.
Technical data:
Bus type & PCIe: M.2 PCIe end-point controller (single-lane, PCIe 2.0 5 GT/s)
Connection – interfaces:
1 x 59-pin M.2 slot (B+M key)
2 x serial RS-232 DB9 connector (9-pin)
Controller/chipset: ASIX AX99100
Serial interfaces:
Maximum transfer rate: up to 1 Mb/s
Data bits: 5, 6, 7, 8, 9 bits
Flow control: None, Xon/Xoff, RTS/CTS
Parität: even, odd, none, marked, empty
FIFO buffer: 256 bytes
Operating temperature: -40 °C to +85 °C

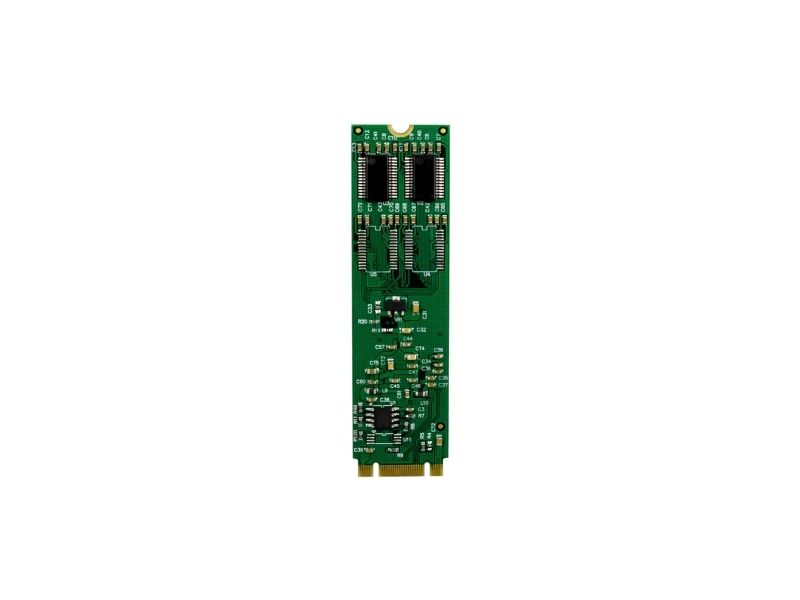

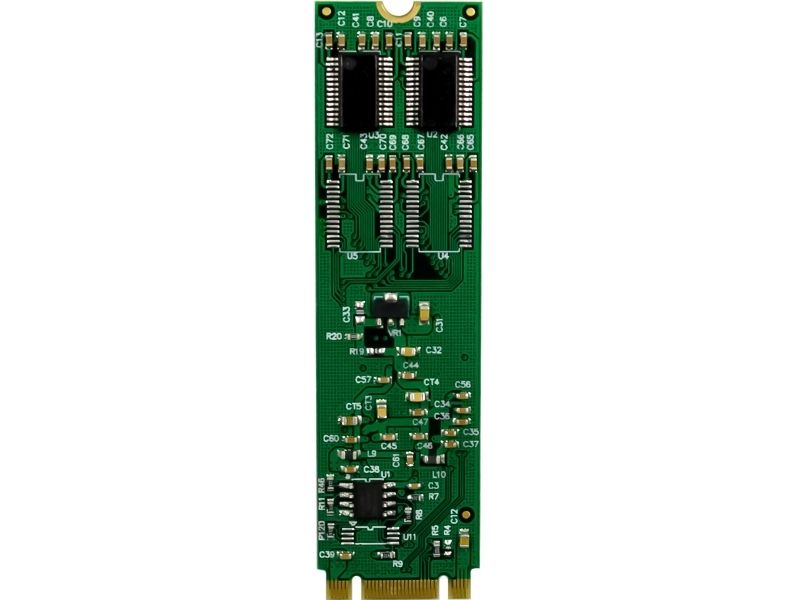

Dimensions: 22 mm x 80 mm (M.2 board)
Features:
Automatic detection of the lane configuration during booting
Onboard LED indicator to display the read/write activity
Power supply via M.2 slot (3.3 V)
Support for remote wake-up, power management and DMA
No additional driver required
System requirements:Hardware:
PC with a free M.2 slot (B+M key that supports PCIe)
Motherboard with PCI Express 2.0 or higher
Operating system support:
Windows: 11, 10, 8.1, 8, 7, Vista, XP
Linux: from kernel 2.6.31

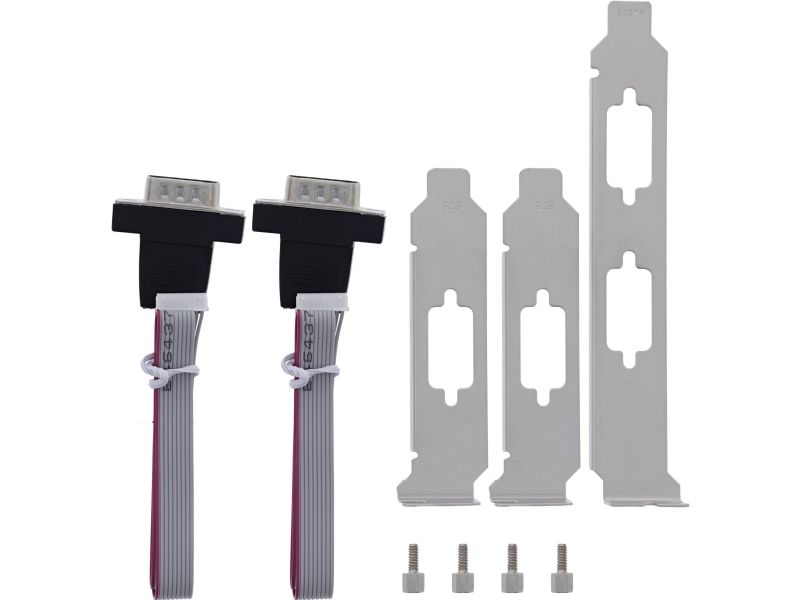

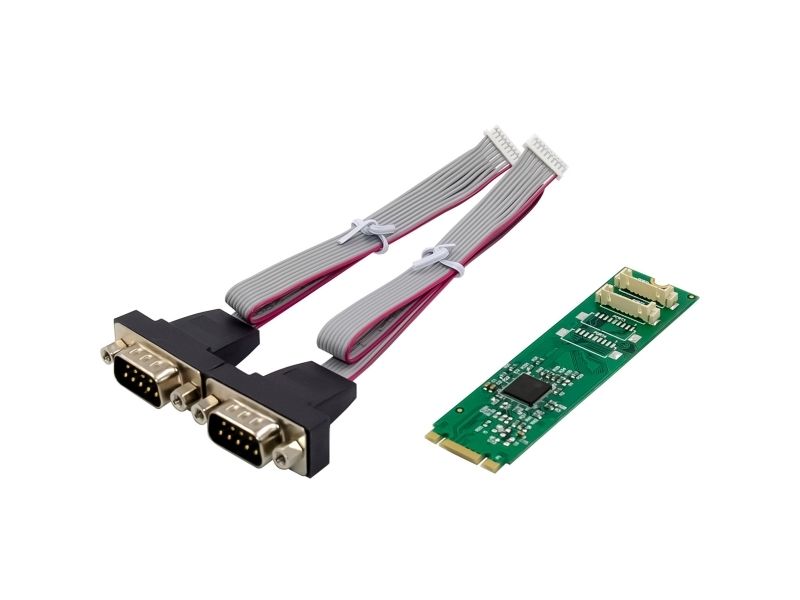

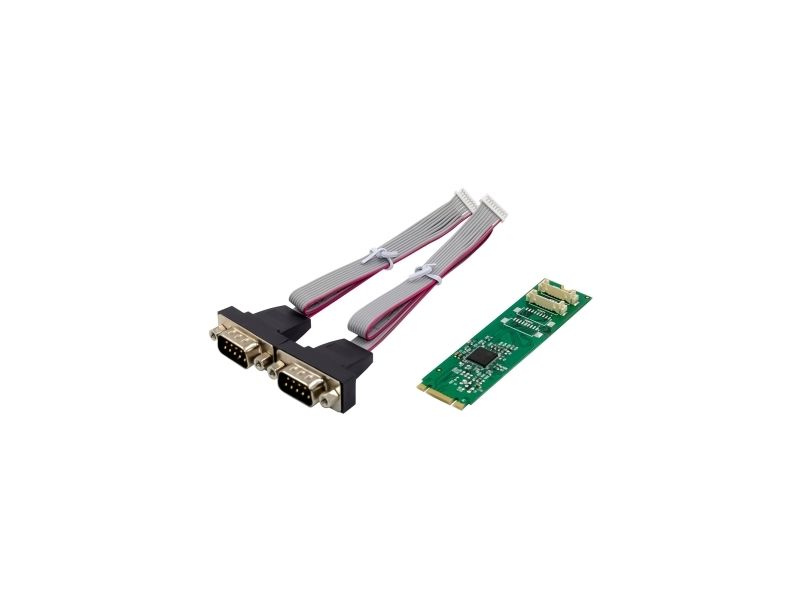

Scope of delivery:

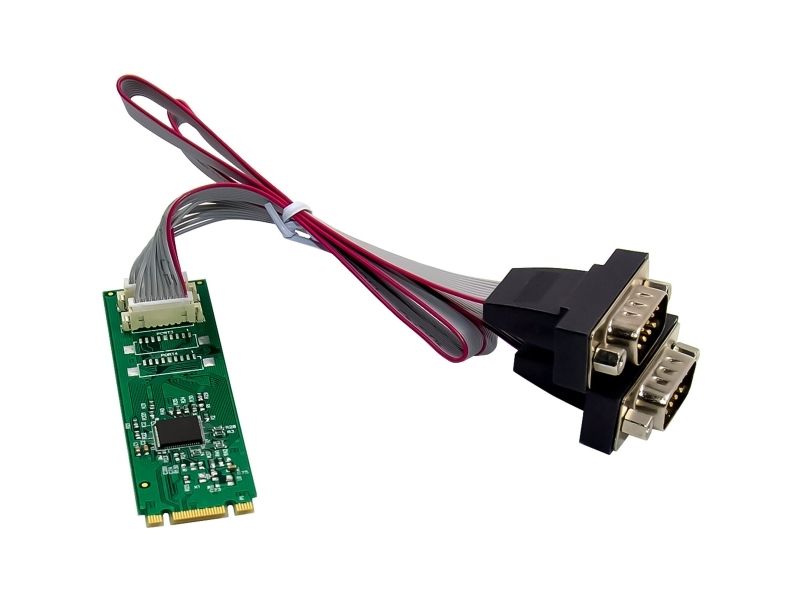

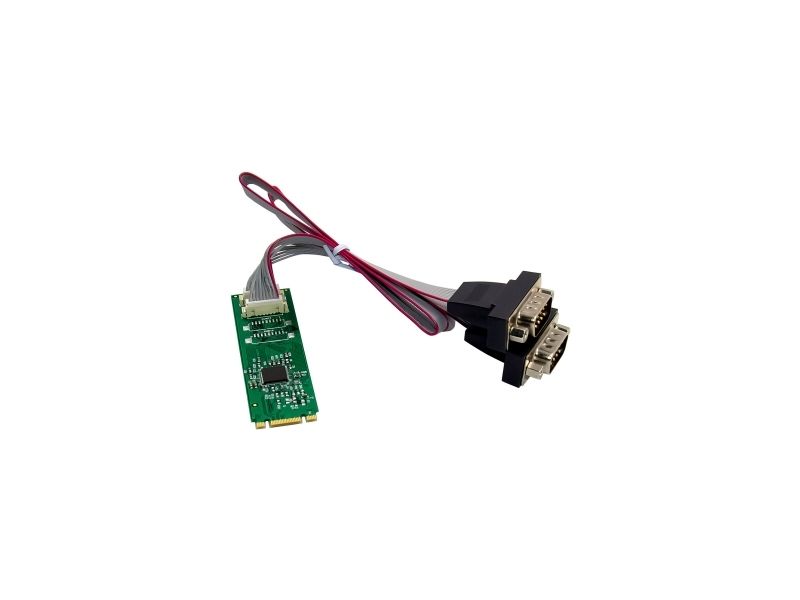

1 x InLine® interface card M.2 to 2x serial 9pin connector
2 x low-profile slot brackets
1 x high-profile slot bracket
2 x DB9-9pin serial cable (20 cm length)
4 x Screw
1 x driver CD
1 x user manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing
