InLine 76660S, PCIe, M.2, Hankjønn, PCIe 3.0, Taiwan, 1 Gbit/s
Varenr.: [24318582] | Producent: Inline | EAN: 4043718341559
Lager
På lager, bestill innen kl. 12:00 så sender vi det samme dag (hverdager). Mere info
Frakt 69,00 - Instabox - Velg din nærmeste pakkeboks.
Fraktprisen er basert på levering til dette postnummer: - Skift postnummer
Oppgi postnummer for levering.
Se alle alternativer
| Instabox - Velg din nærmeste pakkeboks | 69,00 |
| Bring - Hentes på Posten | 75,00 |
| Bring - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer) | 224,00 |
Lagerkampanje
Det er 1 på lager
Den aktuelle pris gælder kun så længe lokalt lager haves
NOK
147,00
eksklusiv MVA 117,60
Totalt inkl. frakt
216,00
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Opprett bruker
Login
Opprett bruker
Login
Send på mail
Supports an NVMe SSD (M.2 Key M)for compact high-performance storage solutions
PCIe 3.0 x1 interfacewith up to 1 Gb/s effective bandwidth
Automatic lane detection on bootfor easy system integration
LED indicatorfor displaying read and write activities
No additional driver required– native support by Windows and Linux

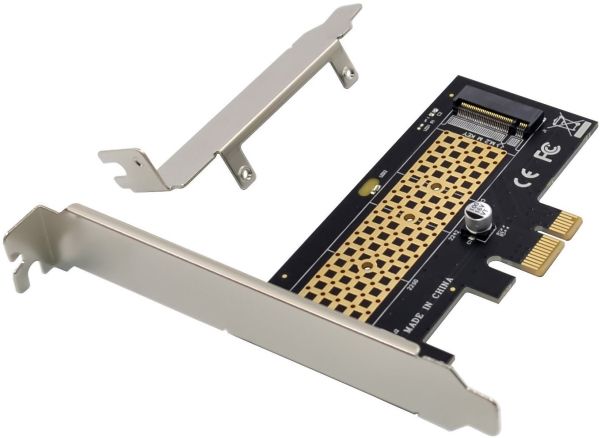

The InLine® PCI Express cardexpands your system with an internal NVMe M.2 slot, which enables the connection of an M.2 SSD (Key M). Thanks to the PCIe 3.0 x1 interfacewith up to 1 Gb/s transfer rate, the card is ideal for systems that require additional fast storage space.
The automatic lane detection during bootensures optimal integration into the system. The M.2 SSD is powered directly via the PCIe bus (3.3 V), and an LED indicatorprovides information about the current operating and activity status.
Technical data:
Bus type & PCIe: PCIe 3.0 x1 (operational in x1, x4, x8 and x16 slots)
Connection – interfaces:
- 1 x M.2 slot (Key M) for NVMe SSDs
- Supported module sizes: 2230, 2242, 2260, 2280
Dimension: 95 mm x 52 mm (PCIe board)
Data rate: Maximum approx. 1 Gb/s
Operating conditions:
Operating temperature: -40 °C to +85 °C
Features:
Automatic detection of the lane configuration during booting
Onboard LED indicator (1x read/write activity LED)
The M.2 NVMe SSD draws its power supply directly from the PCIe bus (3.3 V)
No additional driver required
System requirements:
Hardware:
PC with one free PCIe slot (x1, x4, x8 or x16)
Motherboard that supports PCIe 3.0 or higher
Operating system support:
Windows: 11, 10, 8, 8.1
Windows Server: 2012 R2
Linux: Native support (Fedora, SUSE, Ubuntu, Red Hat)
Scope of delivery:
1 x InLine® PCI Express card to 1x internal NVMe M.2
1 x low-profile slot bracket
1 x hand screwdriver
2 x screws
1 x heat conduction pad
1 x instruction manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensingInLine 76660S. Host interface: PCIe, Output interface: M.2, Host interface gender: Male. Country of origin: Taiwan. Data transfer rate (max): 1 Gbit/s. Power supply input voltage: 3.3 V. Windows operating systems supported: Windows 10, Windows 11, Windows 8, Windows 8.1, Server operating systems supported: Windows Server 2012 R2
PCIe 3.0 x1 interfacewith up to 1 Gb/s effective bandwidth
Automatic lane detection on bootfor easy system integration
LED indicatorfor displaying read and write activities
No additional driver required– native support by Windows and Linux
The InLine® PCI Express cardexpands your system with an internal NVMe M.2 slot, which enables the connection of an M.2 SSD (Key M). Thanks to the PCIe 3.0 x1 interfacewith up to 1 Gb/s transfer rate, the card is ideal for systems that require additional fast storage space.
The automatic lane detection during bootensures optimal integration into the system. The M.2 SSD is powered directly via the PCIe bus (3.3 V), and an LED indicatorprovides information about the current operating and activity status.
Technical data:
Bus type & PCIe: PCIe 3.0 x1 (operational in x1, x4, x8 and x16 slots)
Connection – interfaces:
- 1 x M.2 slot (Key M) for NVMe SSDs
- Supported module sizes: 2230, 2242, 2260, 2280
Dimension: 95 mm x 52 mm (PCIe board)
Data rate: Maximum approx. 1 Gb/s
Operating conditions:
Operating temperature: -40 °C to +85 °C
Features:
Automatic detection of the lane configuration during booting
Onboard LED indicator (1x read/write activity LED)
The M.2 NVMe SSD draws its power supply directly from the PCIe bus (3.3 V)
No additional driver required
System requirements:
Hardware:
PC with one free PCIe slot (x1, x4, x8 or x16)
Motherboard that supports PCIe 3.0 or higher
Operating system support:
Windows: 11, 10, 8, 8.1
Windows Server: 2012 R2
Linux: Native support (Fedora, SUSE, Ubuntu, Red Hat)
Scope of delivery:
1 x InLine® PCI Express card to 1x internal NVMe M.2
1 x low-profile slot bracket
1 x hand screwdriver
2 x screws
1 x heat conduction pad
1 x instruction manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensingInLine 76660S. Host interface: PCIe, Output interface: M.2, Host interface gender: Male. Country of origin: Taiwan. Data transfer rate (max): 1 Gbit/s. Power supply input voltage: 3.3 V. Windows operating systems supported: Windows 10, Windows 11, Windows 8, Windows 8.1, Server operating systems supported: Windows Server 2012 R2
