M5Stack U087, Voltmeter, M5Stack, Flerfarget, 65 mm, 24 mm, 8 mm

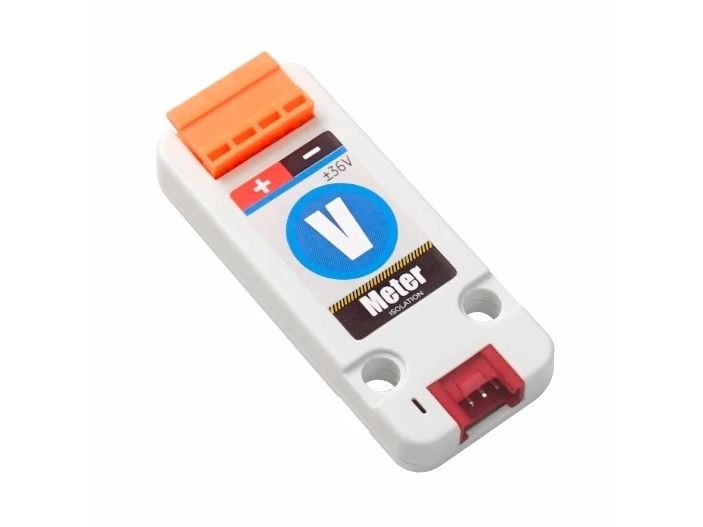

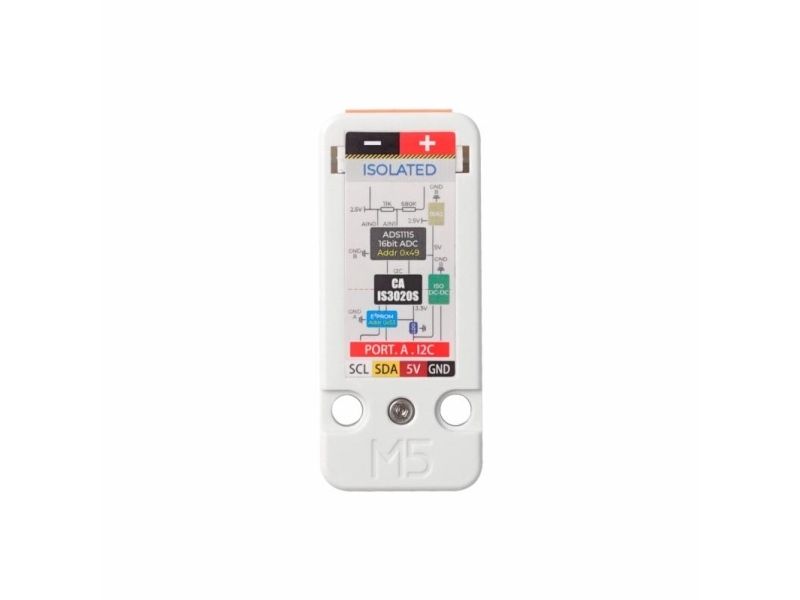

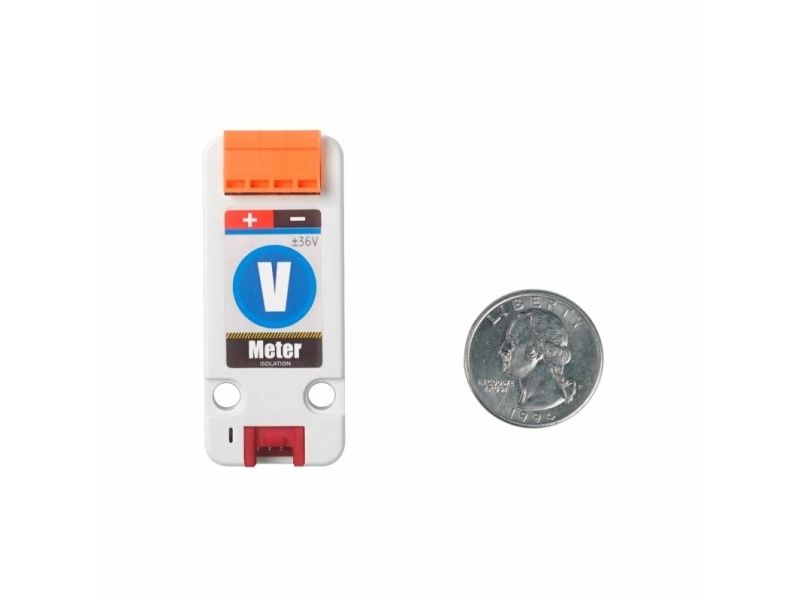

Voltmeter Unit is a voltage meter that can monitor the voltage in real time. The 16-bit ADC (analog-to-digital) converter ADS1115 is used internally to communicate through I2C (0X49). In order to ensure the measurement accuracy, there is a built-in DC-DC isolated power supply, and the I2C interface is also electrically isolated through the low-power isolator CA-IS3020S. This prevents noise and surges on the data bus or other circuits from entering the local ground terminal to interfere or damage sensitive circuits. Each Unit is individually calibrated when leaving the factory, with an effective accuracy of ±1999 (3 digits after the decimal point), and a maximum measurement voltage of ±36V. Minimal Resolution reaches 0.490798455 mV.
