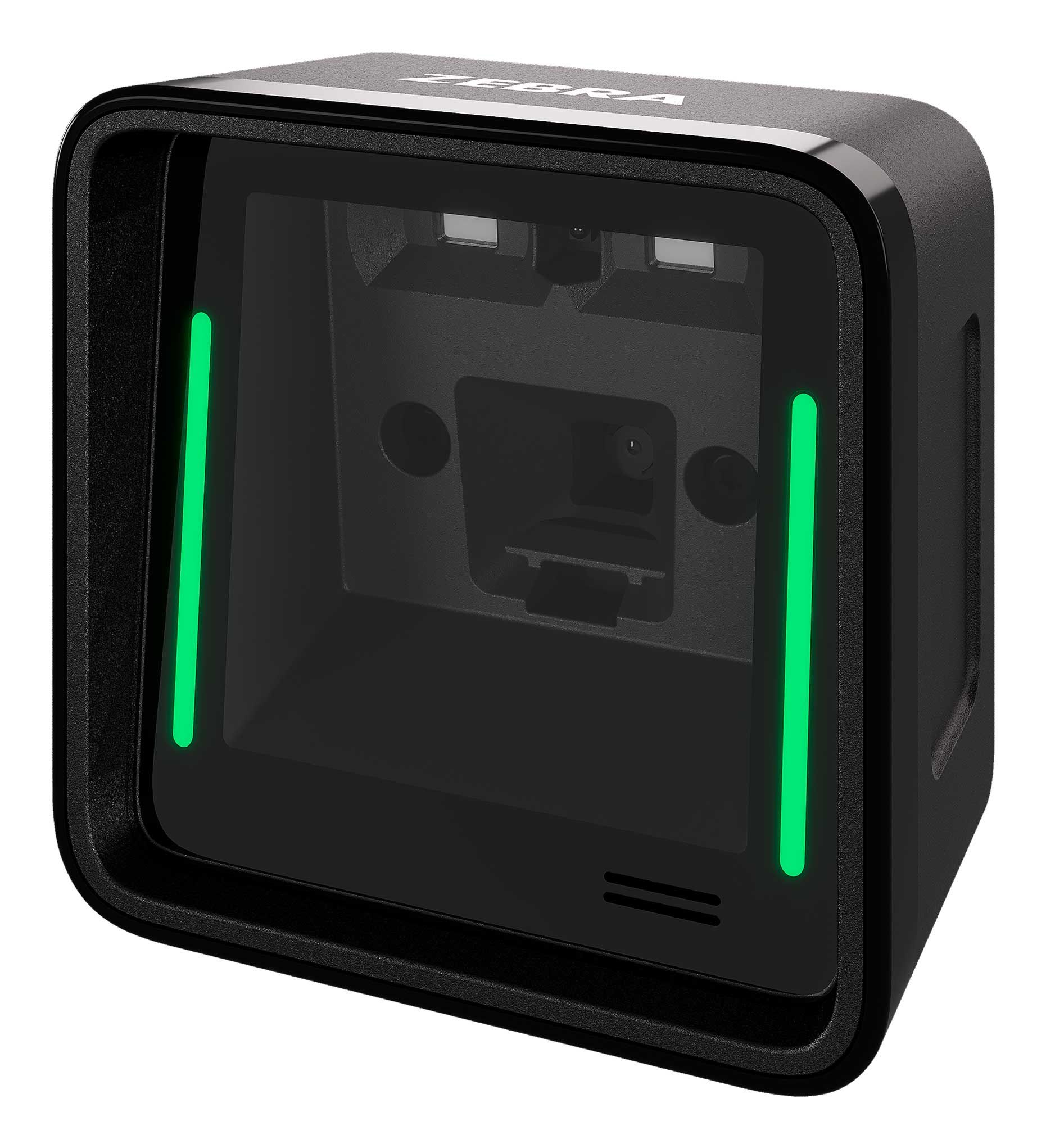

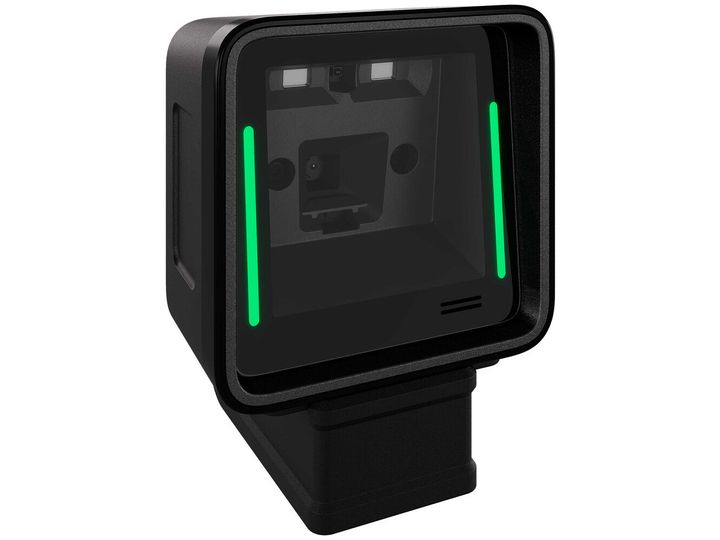

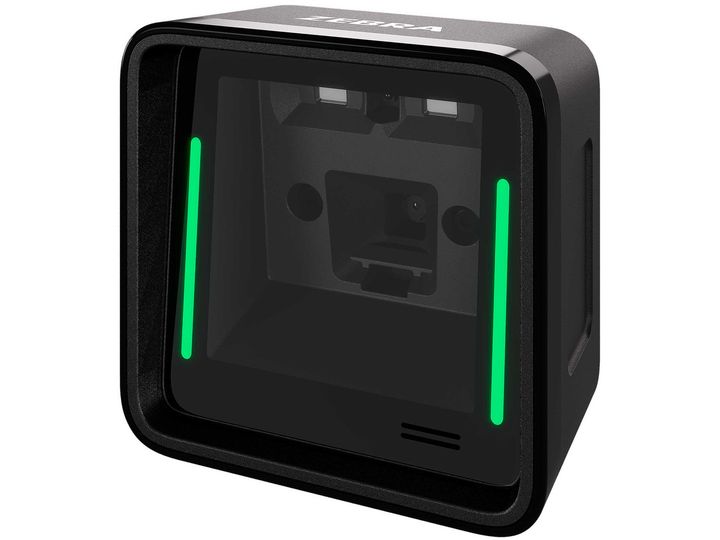

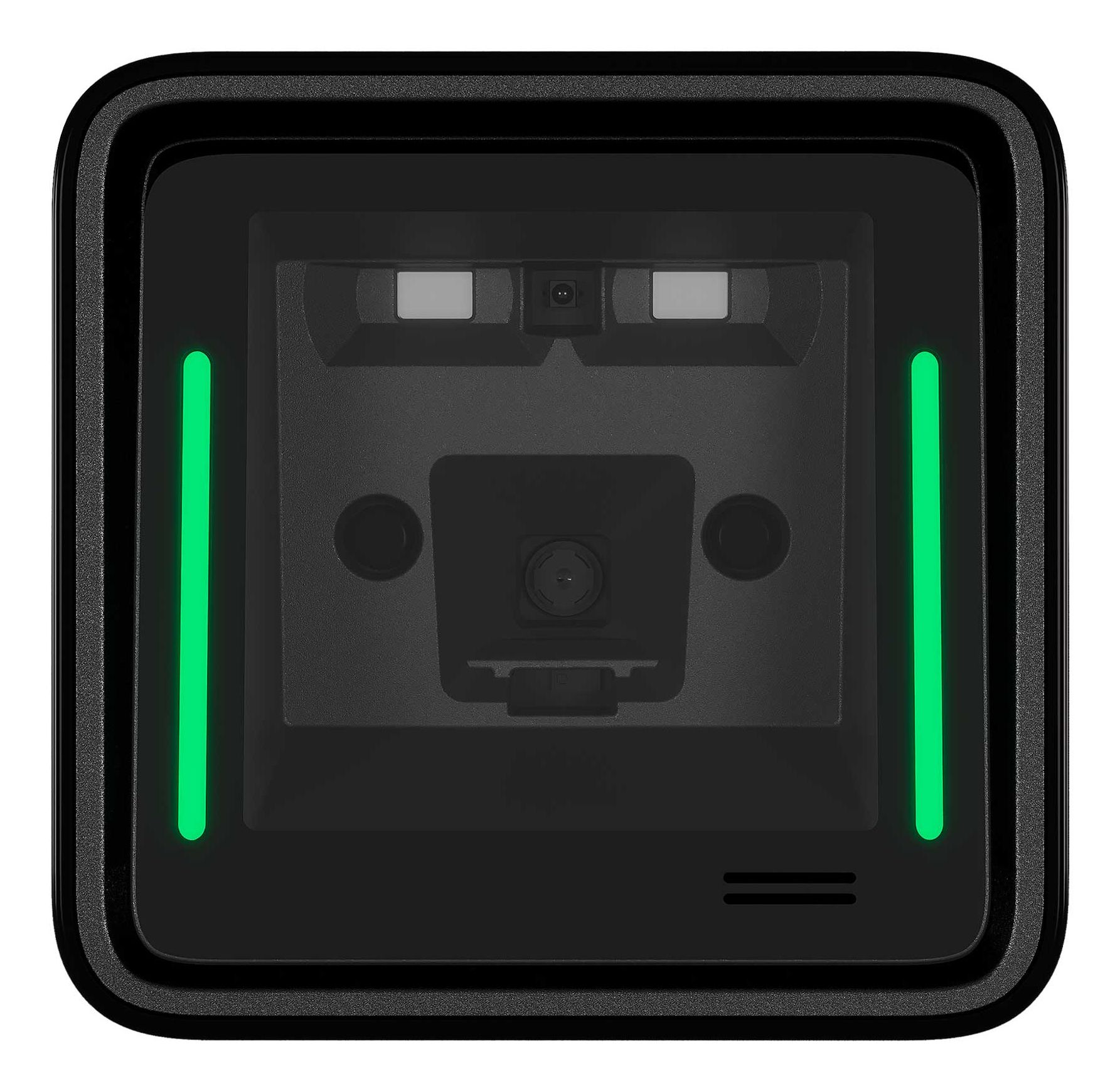

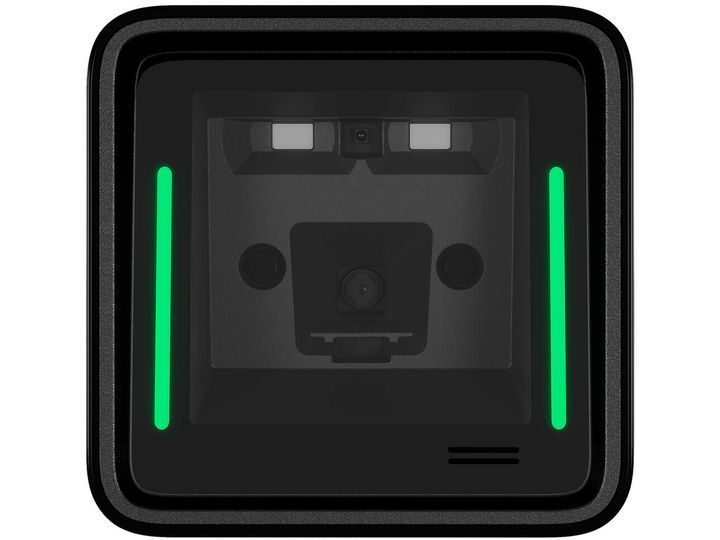

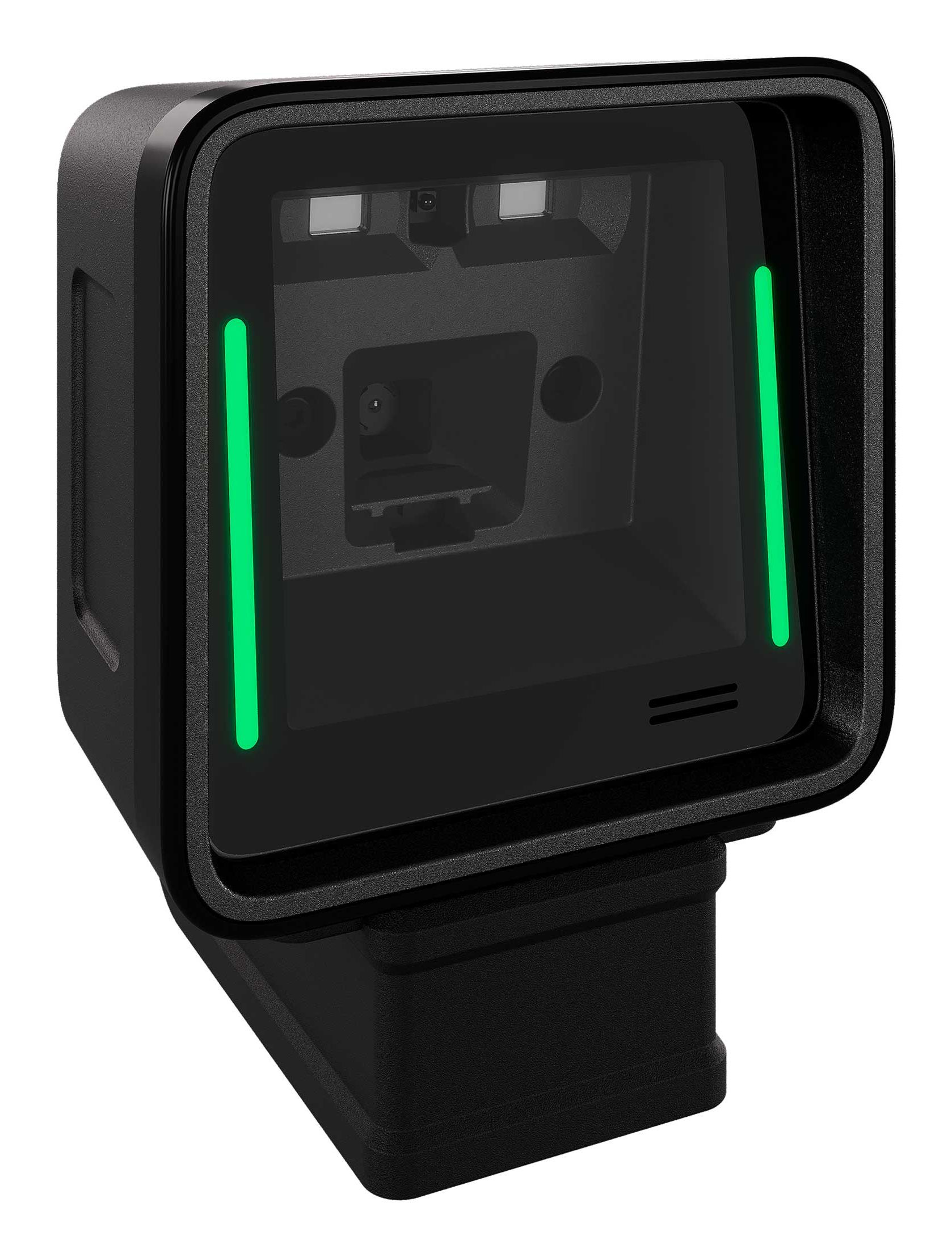

The Zebra SP2002 from the Zebra SP20 Series is a reliable stationary barcode reader, designed to streamline your scanning processes. It offers multiple interface options including RS-232 and USB, ensuring compatibility with various devices. The scanner features a range of barcode formats, accommodating everything from traditional codes like UPC/EAN to advanced types like QR codes and Data Matrix. With a maximum working distance of 30.5 cm and a minimum bar width of 3 mil, it achieves high efficiency in diverse applications. Its user-friendly design includes a beeper and LED indicator for notification, making it easier to integrate into any setup.
In addition, the Zebra SP2002 is built to withstand various environmental conditions, operating in temperatures ranging from 0°C to 50°C with a humidity range of 5-95% RH. The scanner is equipped with 15 kV ESD protection against air discharge, ensuring durability and longevity. Compliance with various standards, including IP52, EN 61000-4-2, and UL 62368-1, highlights its operational reliability and safety in professional environments. The compact desktop form factor and efficient single-pass scanning mode make the Zebra SP2002 a practical choice for businesses looking to enhance their efficiency and accuracy in barcode scanning.
Produktbeskrivelse
Zebra SP20 Series SP2002 - Standard Range (SR) - strekkodeskanner
Type
Strekkodeskanner - stasjonær - stasjonær - RS-232, USB - dekodet
Farge
Midnatts sort
Minste strekstørrelse
3 mille
Skanneelementtype
2D-bildefremviser
Sensoroppløsning
1280 x 800
Overføringsteknologi
Kablet
Strømforsyning
DC 5 V
Dimensjoner (BxDxH)
8 cm x 8 cm x 14 cm
Vekt
218 g
Fabrikantgaranti
3 års garanti
Generelt
Type
Strekkodeskanner - stasjonær - stasjonær
Farge
Midnatts sort
Strekkode
Grensesnittype
RS-232, USB
Minste strekstørrelse
3 mille
Skanneelementtype
2D-bildefremviser
Sensoroppløsning
1280 x 800
Bølgelengde lyskilde
660 nm
Skannemodus
Enkeltpass
Maks. arbeidsavstand
30.5 cm
Skjevhet (grader)
70
Hellingsvinkel (grader)
60
Trykk-kontrassignal (PCS)
20%
Desifreringsskapasitet
Kode 39, Code 128, Kode 93, Strekkode, NW-7, Kode 11, MSI-Plessey, UPC/EAN-vedlegg, Korean 3 av 5, GS1 DataBar kode, Base 32, Industriell 2 av 5, PDF417, MicroPDF417, Composite Codes, TLC39, aztek-kode, MaxiCode, Data Matrix, QR kode, Micro QR-kode, Han Xin, SecurPharm, Postal Code, Digimarc Barcode
1 x RS-232 - RJ-45 1 x USB - Type A 1 x tastaturkile
Diverse

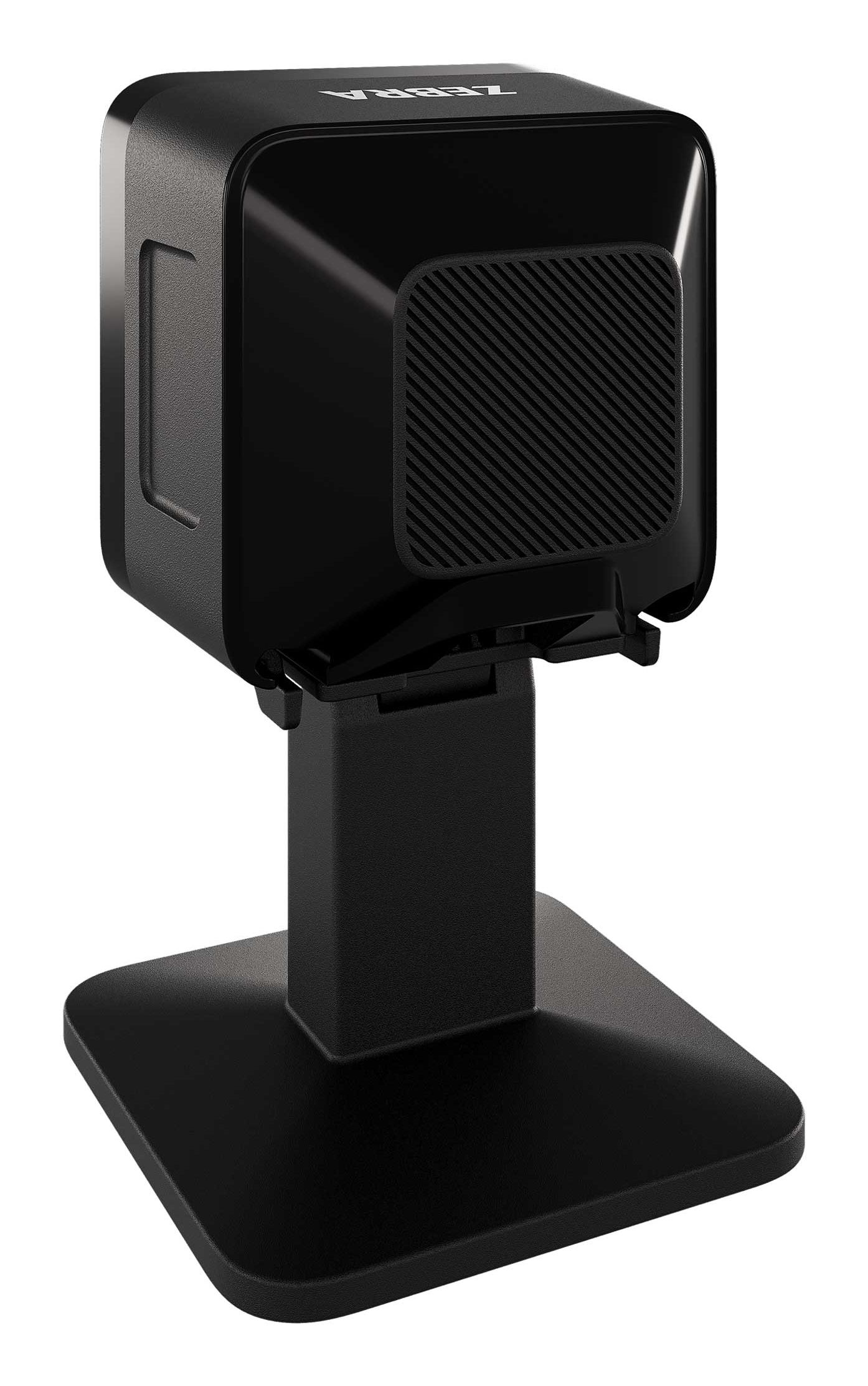

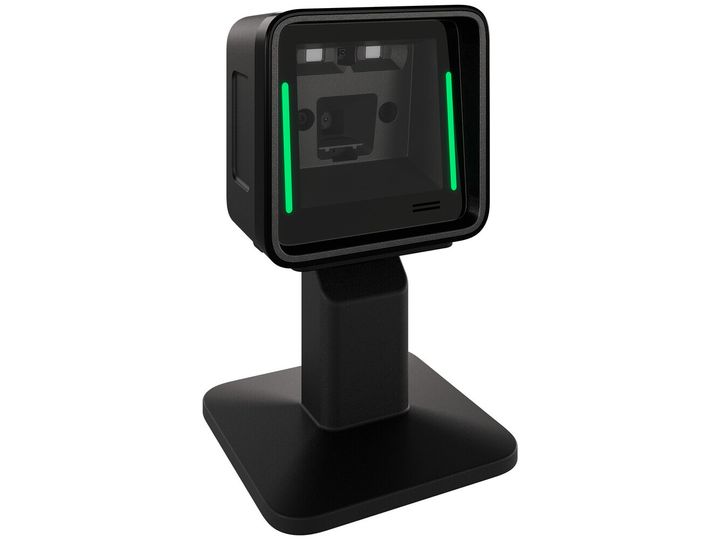

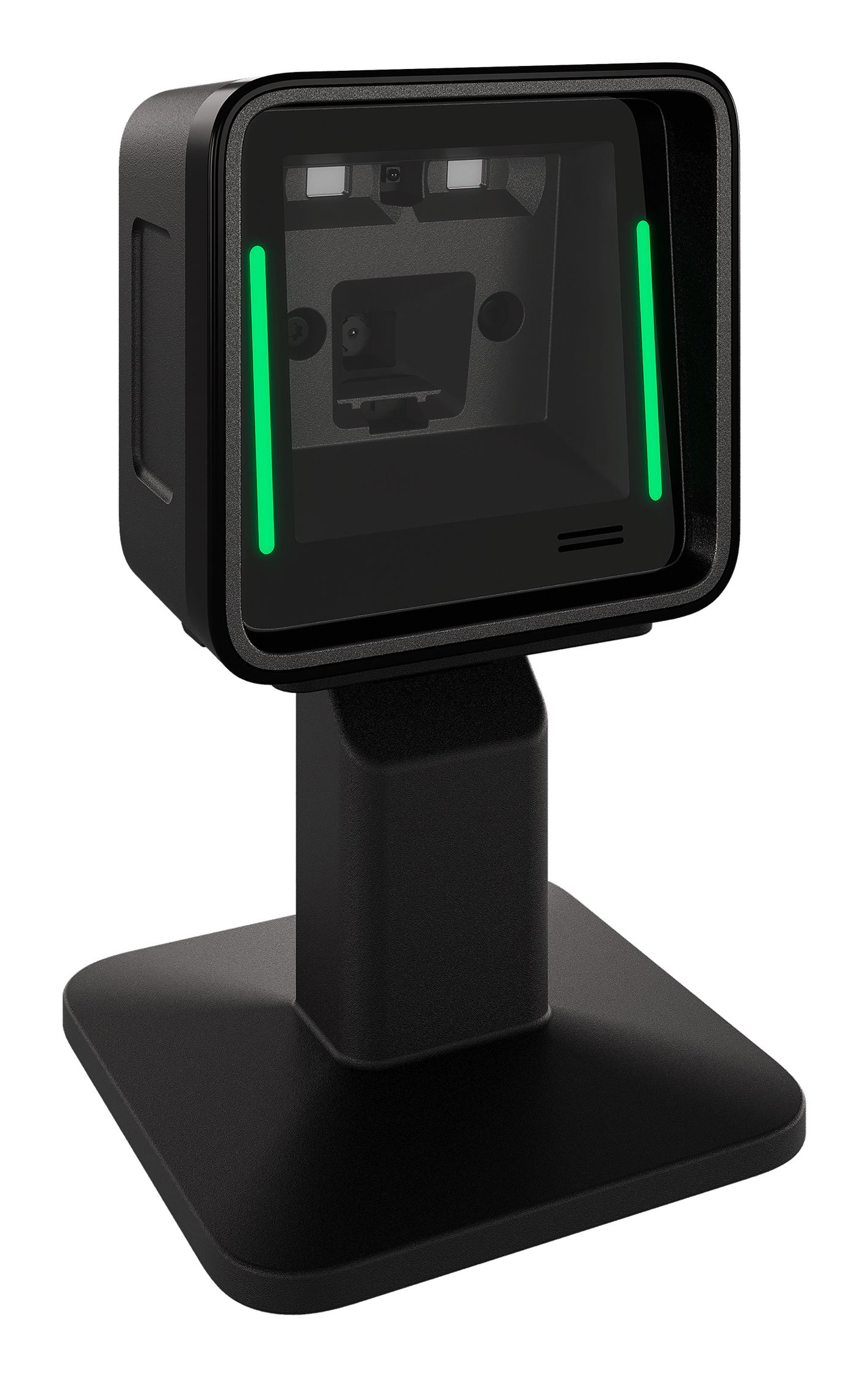

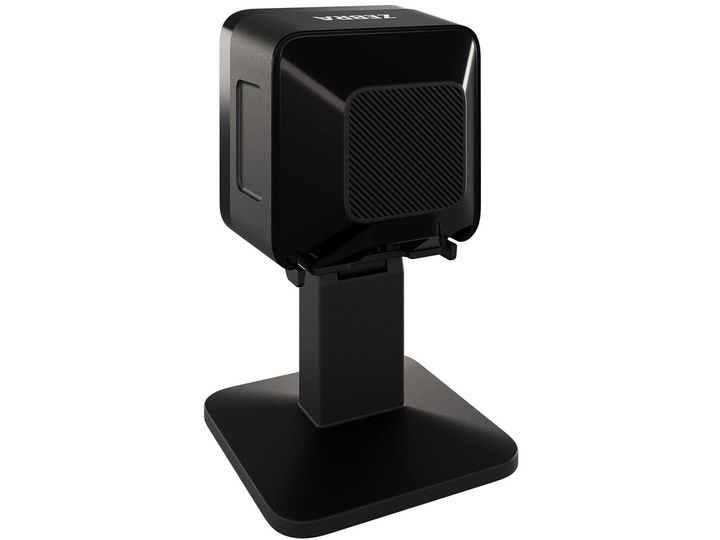

Tilleggsutstyr inkludert
Stativ
Tilpassede standarder
IP52, EN 61000-4-2, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-19, IEC 62368-1, EN 62368-1, IEC 62471, FCC 47 CFR part 15 B class B, ICES-003 issue 7 Class B, EN 55032, EN 55035, EN 61000-3-3, EN 61000-6-2, EN60601-1-2
Strømforsyning
Spenning
DC 5 V
Nødvendig elektrisk strøm
280 mA (drift)
Størrelser og vekt
Bredde
8 cm
Dybde
8 cm
Høyde
14 cm
Vekt
218 g
Fabrikantgaranti
Service og støtte
Begrenset garanti - 3 år
Miljøparametere
Min. driftstemperatur
0 °C
Maks. Driftstemperatur
50 °C
Driftsfuktighet
5 - 95% RH (non-condensing)
Synkingsspesifikasjon
1,5m fall på betong
