High resolution support for modern workplaces:Transmits razor-sharp images with up to 7680x4320 pixels at 60Hz – ideal for CAD, video editing, or presentation technology. Reliable signal quality thanks to triple shielding:The robust cable construction effectively protects against electromagnetic interference – for a stable and secure connection. Long-term investment security:With DisplayPort 1.4 specification, HDR support, and 8K compatibility, the cable meets the highest technical standards. Professional workmanship with gold-plated contacts:Reduces contact resistance and extends service life with frequent reconnection – particularly important in changing system environments. Universally applicable in IT and digital signage:Reliably connects PCs, workstations, monitors, and large displays in professional applications.
The InLine® DisplayPort 1.4 cable series offers a professional connection solution for demanding AV installations in office, technical, and industrial environments. It supports the transmission of image content in Ultra High Definition with a resolution of up to 7680x4320 (8K@60Hz) as well as 4K content with high refresh rates of up to 120Hz. Thanks to support for HDR, RGB/4:4:4, 4:2:2, and 12-bit color depths, the cable delivers excellent image quality and high compatibility. The triple-shielded design effectively protects against external interference and enables reliable data transmission—ideal for multi-monitor setups, digital signage solutions, or control rooms. Gold-plated contacts ensure durable, stable connections—even with frequent changes of connected devices. The series is ideal for a wide range of installation scenarios, both stationary and mobile.

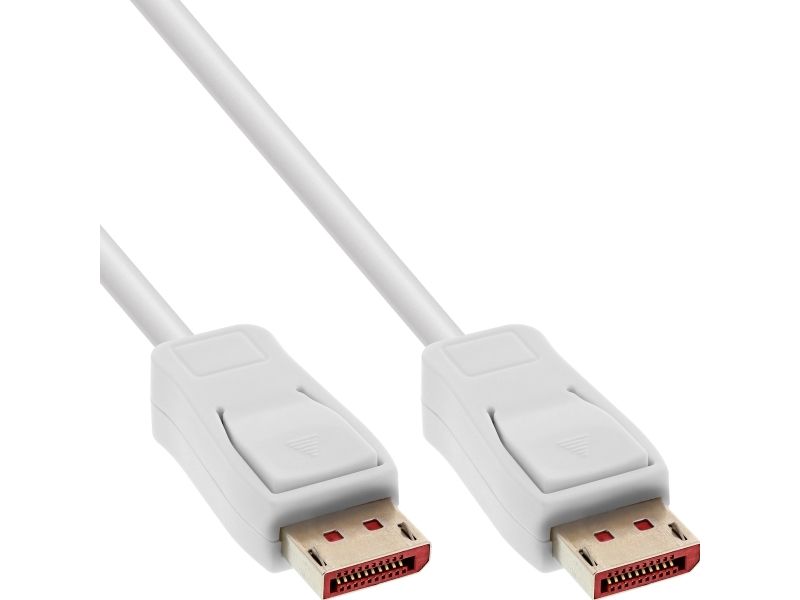

DisplayPort connector to DisplayPort connector DisplayPort version: 1.4 Supported resolutions: FUHD 7680x4320 8K@60Hz, UHD 3840x2160 120HZ RGB/4:4:4 8bit HDR OFF, UHD 3840x2160 120HZ RGB/4:2:2 12bit HDR ON, UHD 3840x2160 60HZ RGB/4:4:4 12bit HDR ON, FullHD 1920x1080 Shielding: triple shielded Color: white Contacts: gold-plated Packaging: PE bag with EAN code
Kabellengde
5 m
Tilkobling 1
DisplayPort
Tilkobling 2
DisplayPort
Connector 1 kjønn
Hankjønn
Connector 2 kjønn
Hankjønn
Maksimal oppløsning
7680 x 4320 piksler
Produktfarge
Hvit
Tilkobling 1 formfaktor
Rett
Tilkobling 2 formfaktor
Rett
Kontaktplettering
Gull
DisplayPort-versjon
1.4
Støttede grafikkoppløsninger
1920 x 1080 (HD 1080), 3840 x 2160, 7860 x 4320
Maksimal oppdateringshastighet
120 Hz
Magnetisk beskyttet
Ja
Antall beskyttende lag
3
AWG-ledningsstørrelse
28
HDR (High Dynamic Range) støttes
Ja
Dataoverføringshastighet
32,4 Gbit/s
Fargeprøvetaking
4:2:2, 4:4:4
Kabeltype
Rund kabel
Samsvarssertifikat
RoHS, TÜV mark, UL
Kabeldiameter
7 mm
Vekt
300 g
Pakkebredde
180 mm
Pakkedybde
240 mm
Pakkehøyde
40 mm
Pakkevekt
311 g
Pakketype
Polybag
Antall per pakke
1 stykker
Opprinnelsesland
Taiwan
Dybde
5000 mm
Høyde
13 mm
Lengde
5000 mm
Bredde
20 mm
Produktet har følgende varenummer i vårt system:
SKU:
17205W
SKU:
4043718347490
EAN:
4043718347490
