Modulær kontaktor Acti9 iCTK50 25A 1NO 50Hz 230 VAC uten mulighet for utvidelse med hjelpekontakter

Varenr.: [25129868] | Producent: SCHNEIDER ELECTRIC | Model-nr.: A9C40125 | EAN: 3606481088864
Fjernlager
Varen er på fjernlager, leveringstiden er 4-7 hverdager. Mere info
Leveringsalternativer  - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
59,00
Posten Norge – Leveres til pakkeboks nær deg
59,00
Posten Norge – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Posten Norge - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering. Lagre
NOK 202,00
eksklusiv MVA 161,60
Totalt inkl. frakt 261,00
Vi beklager, men dette produktet kan ikke selges til det valgte landet!
Les ytterligere spesifikasjoner og beskrivelse.

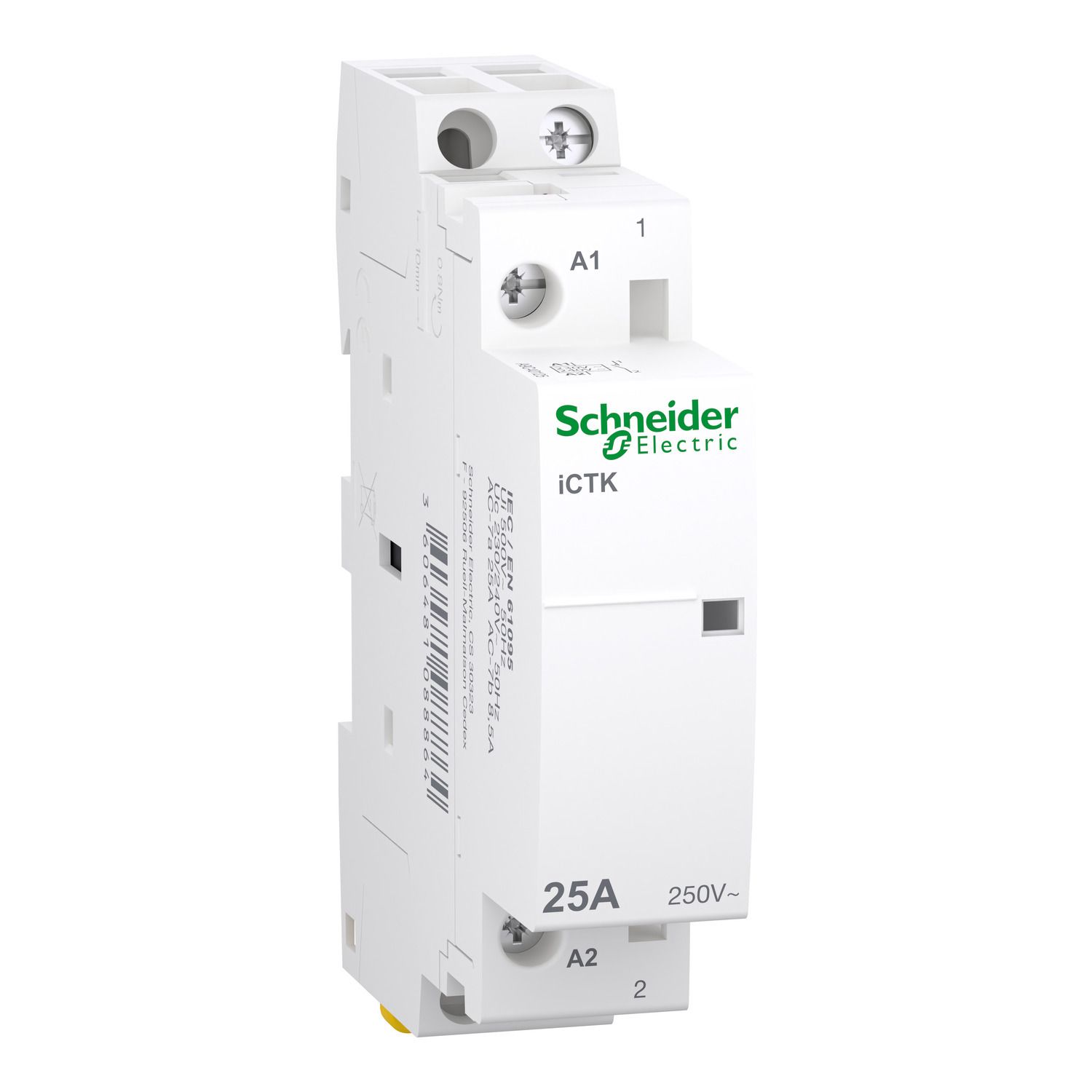

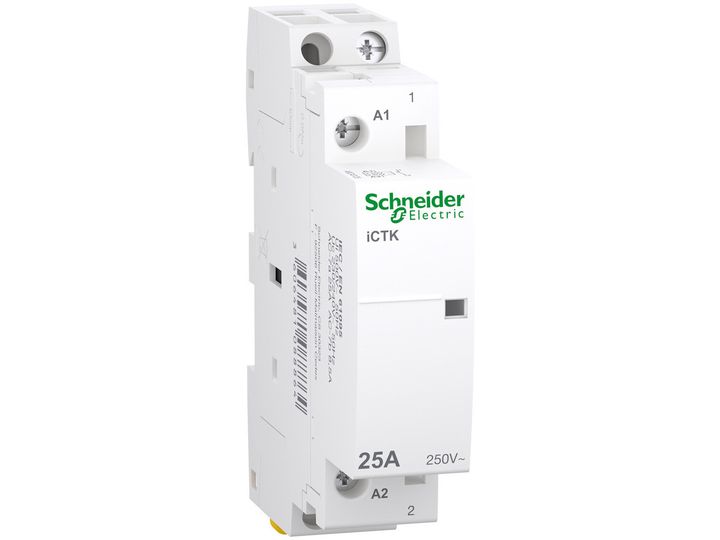

This Acti9 iCT is a modular contactor. It is a 1P remote control device with 1 normally open contact. The In rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC to 240VAC. This device could be used for control circuits. This device could be used for remote switching small motors (fans, mixers) or HVAC system applications. This product is compliant with IEC/EN 61095 standard. Electrical endurance goes up to 80000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-3, AC-5A or AC-5B and 25000 cycles for AC-7B. The maximum switching operations is 100 per day. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 2 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 81mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
