InLine® videosplitter, 1x4, HDMI 4K/30 Hz (57887B)
Varenr.: [25690766] | Producent: Inline | Model-nr.: 57887B | EAN: 4043718348848
Fjernlager
Varen er på fjernlager, leveringstiden er 6-8 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
59,00
Posten Norge – Leveres til pakkeboks nær deg
59,00
Posten Norge – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Posten Norge - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
399,00
eksklusiv MVA 319,20
Totalt inkl. frakt
458,00
Legg til i liste
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Send på mail

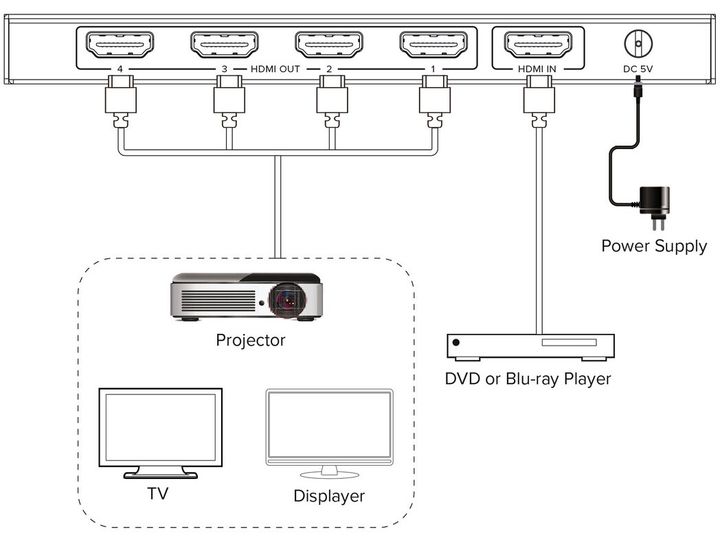

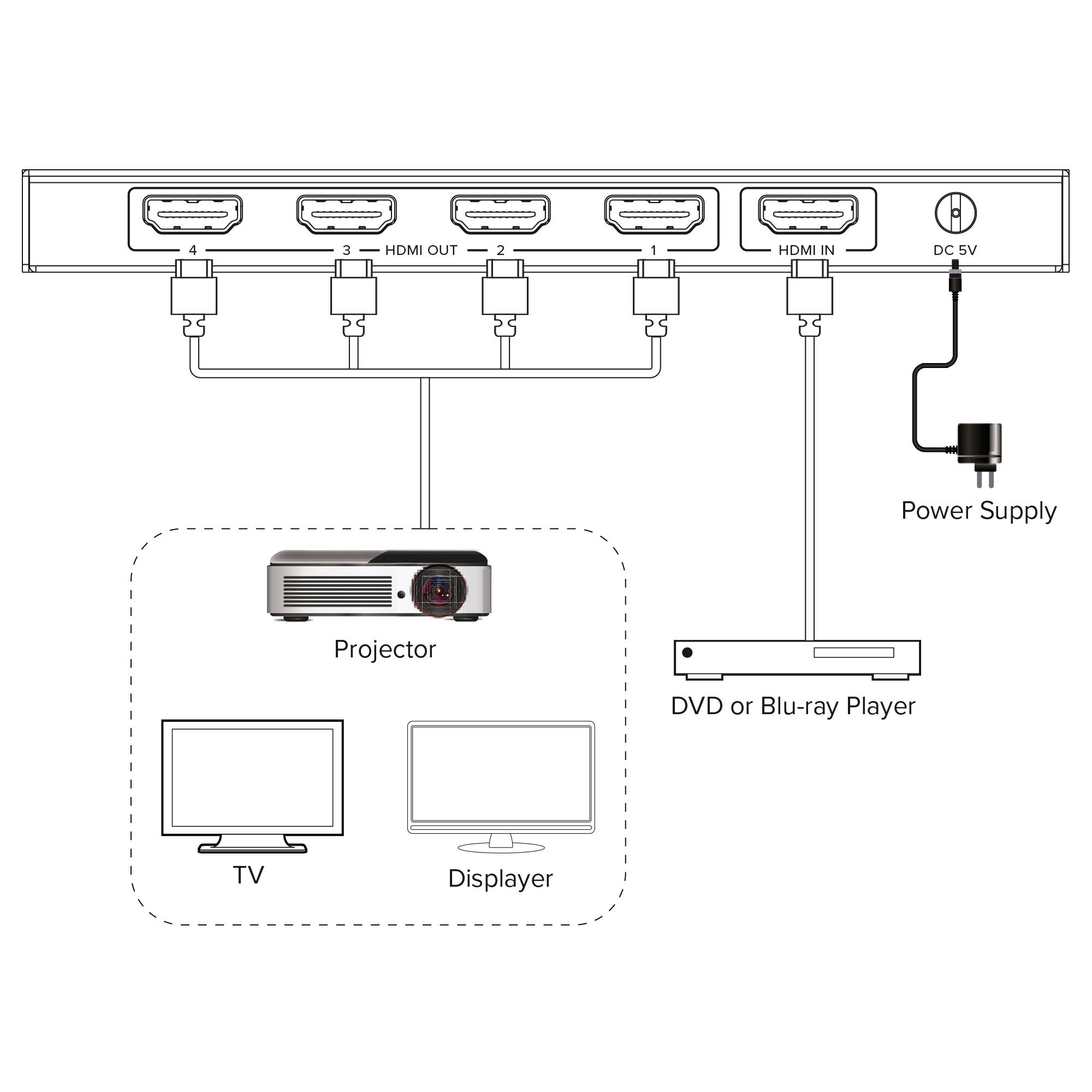

Parallel 1x4 signal distribution:Distributes an HDMI signal to up to four output devices simultaneously. All connected displays reproduce identical image and sound signals without switching.
4K resolution up to 3840 x 2160 @ 30 Hz:Supports Ultra HD content with a data rate of up to 10.2 Gb/s. Alternatively, 1920 x 1080 @ 60 Hz is reliably transmitted.

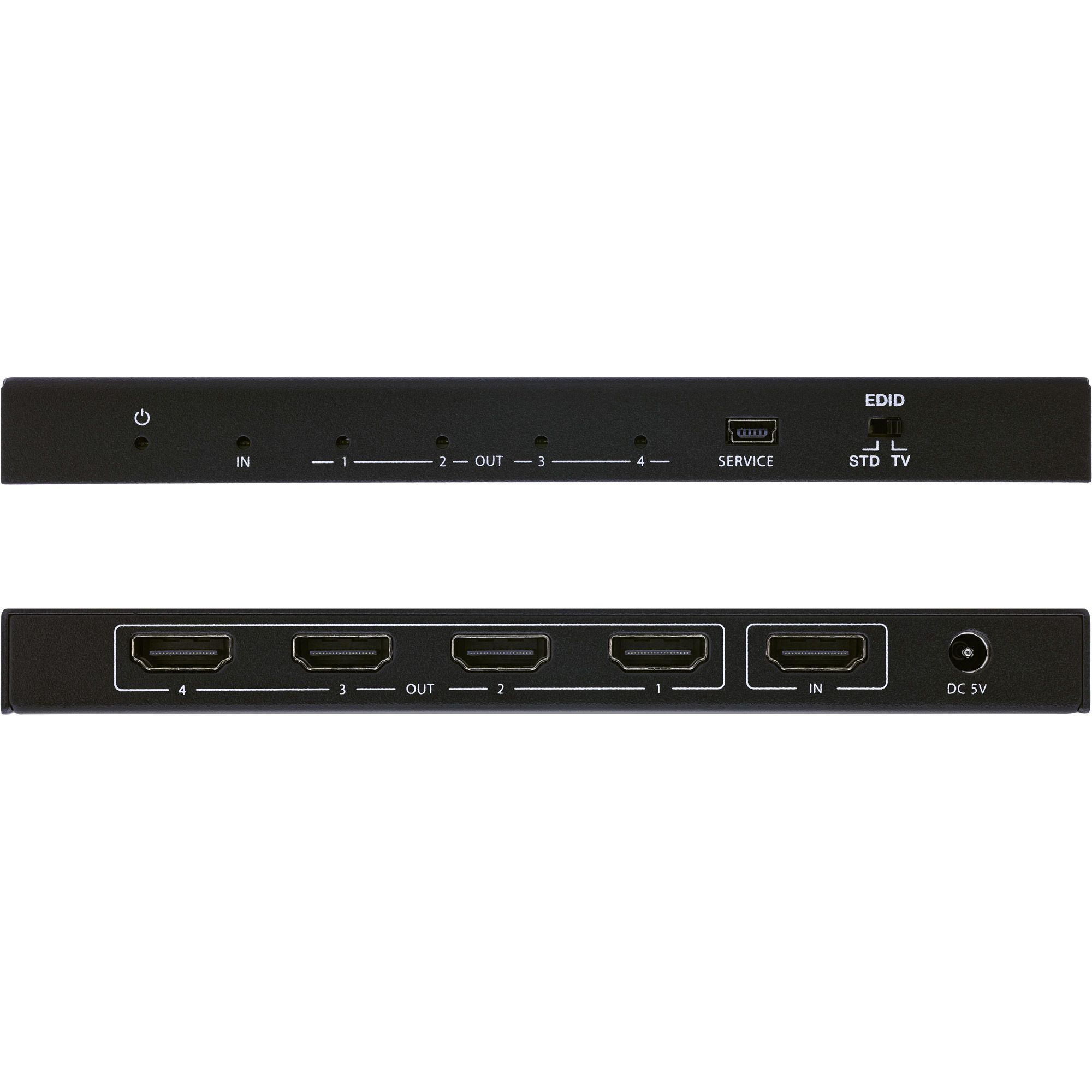

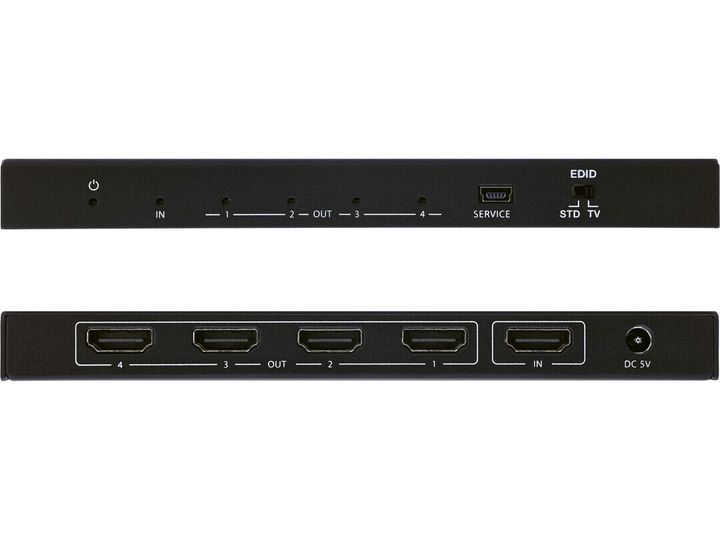

EDID switching for flexible display adjustment:The integrated slide switch allows you to choose between STD and TV mode. The output signal is adjusted to different display devices.
Broad audio support including multi-channel formats:Supports PCM 2.0 / 5.1 / 7.1 as well as Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio and DSD for high-quality sound transmission.
Designed for professional continuous operation:Developed for use in dry indoor environments with stable signal transmission in AV installations, presentation environments and digital signage applications.

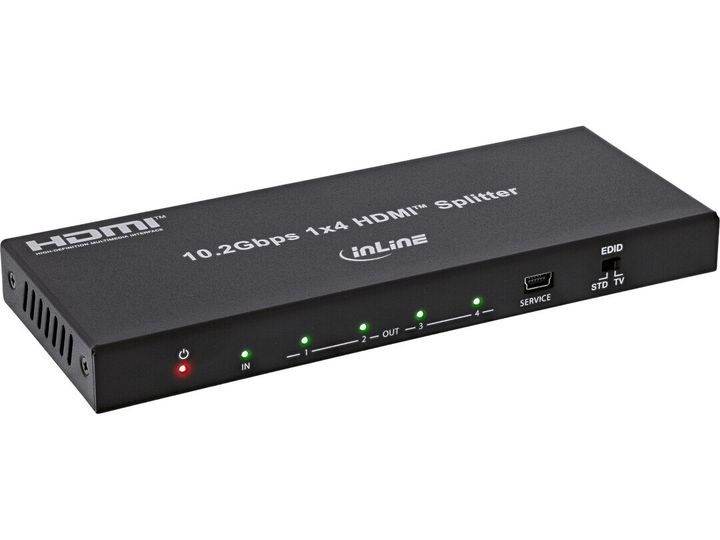

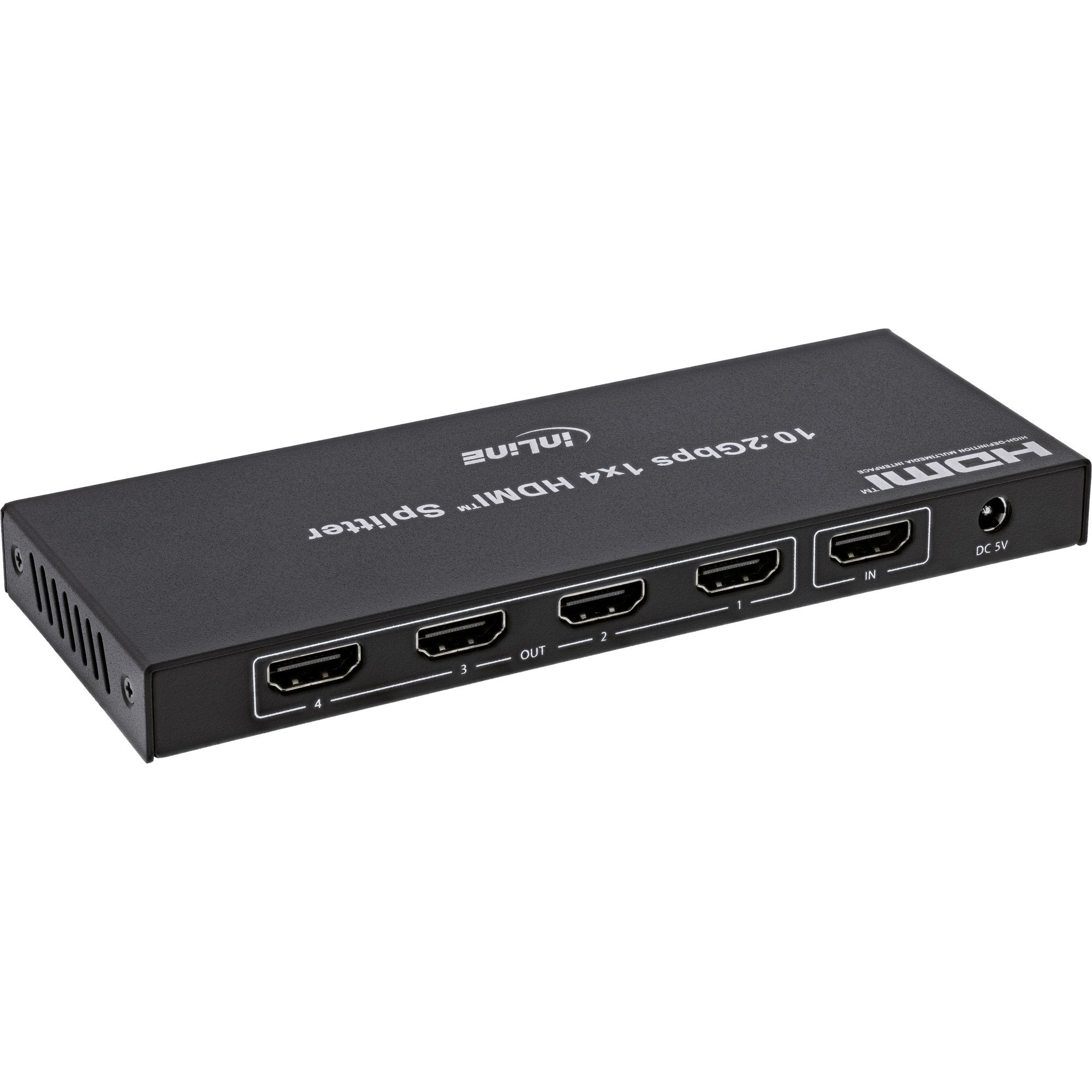

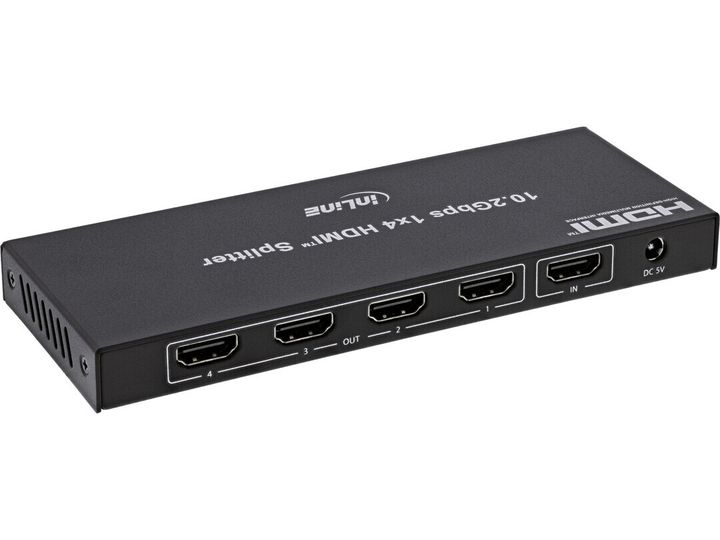

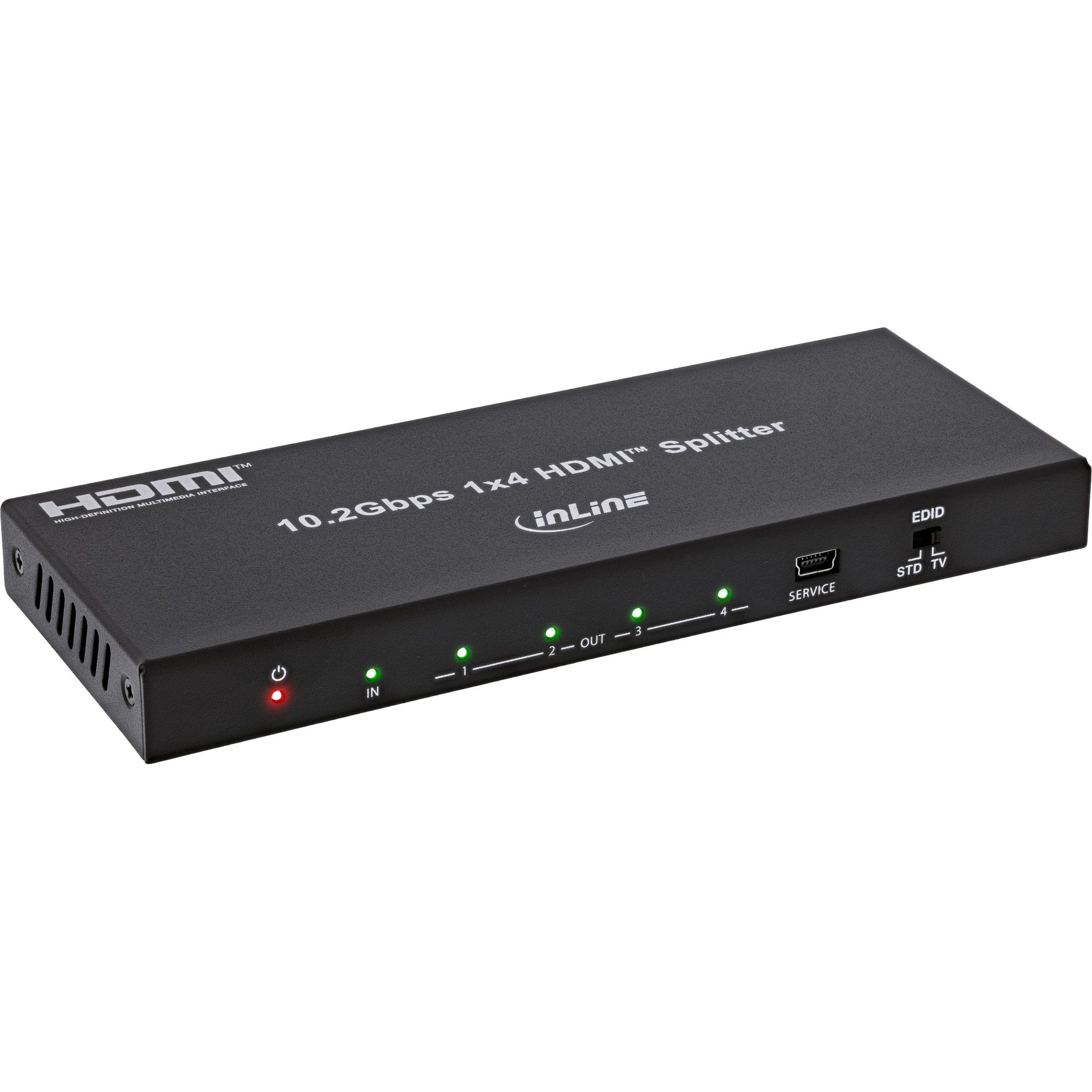

The InLine® 1x4 HDMI Splitter enables the simultaneous distribution of an HDMI signal to up to four output devices. All connected displays reproduce identical image and sound signals. The device is suitable for installations where a signal needs to be output multiple times.
With support for HDMI 1.4 and HDCP 1.4, the splitter processes resolutions up to 3840 x 2160 @ 30 Hz and 1920 x 1080 @ 60 Hz. The maximum data rate is 10.2 Gb/s with a bandwidth of 297 MHz. 3D content is also supported.
Thanks to integrated EDID switching via a slide switch, you can choose between STD and TV mode. This allows the output signal to be adapted to different display devices. RGB and YCbCr 4:4:4 / 4:2:2 / 4:2:0 colour spaces with 8, 10 or 12 bit colour depth are supported.
The HDMI splitter also offers comprehensive support in the audio sector. In addition to PCM 2.0, 5.1 and 7.1, Dolby Digital, Dolby TrueHD, DTS, DTS-HD Master Audio and DSD are also processed.
Technical features
Maximum number of outputs: 4
EDID management: slide switch (STD / TV)
Operating temperature: 0 °C to +40 °C
Storage temperature: −20 °C to +60 °C
Permissible humidity: 20–90 %, non-condensing
Video / Signal
HDMI standard: HDMI 1.4
HDCP: Version 1.4
Maximum resolution:
- 3840 x 2160 @ 30 Hz
- 1920 x 1080 @ 60 Hz
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Colour depth: 8 / 10 / 12 bits
Maximum data rate: 10.2 Gb/s (297 MHz)
3D support: yes
Audio
Supported audio formats:
PCM 2.0 / 5.1 / 7.1
Dolby Digital
Dolby TrueHD
DTS
DTS-HD Master Audio
DSD
Power supply (external)
Input: AC 100–240 V / 50–60 Hz
Output: DC 5.0 V / 1.0 A
Output power: max. 5.0 W
Average efficiency in operation (230 V / 50 Hz): 79.70%
Power consumption at zero load (230 V / 50 Hz): 0.09 W
Efficiency at low load (10%) (230 V / 50 Hz): 76.78%
Scope of delivery
1 x HDMI splitter
1 x power supply (DC 5 V / 1 A)
1 x user manual (German/English)
