- surface-mounted distributor as 6-fold distributor or wall outlet for structured cabling in the building - component testing for Cat.6A to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), certified to GHMT - compliance with class EA up to 500 MHz to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09 - tested: components up to 600 MHz, link up to 800 MHz - for 10 GBit Ethernet (IEEE 802.3an) - suitable for Power over Ethernet (PoE, PoE plus and UPoE) - wire pairs can be led to the LSA terminal without untwisting the pair - connection of 2 to 4-pair data lines to LSA insulation displacement connectors (AWG 26/1-22/1) - conductor colors marking to T568A - label window for enclosed identification labels - optional strain relief using cable ties
Produktbeskrivelse

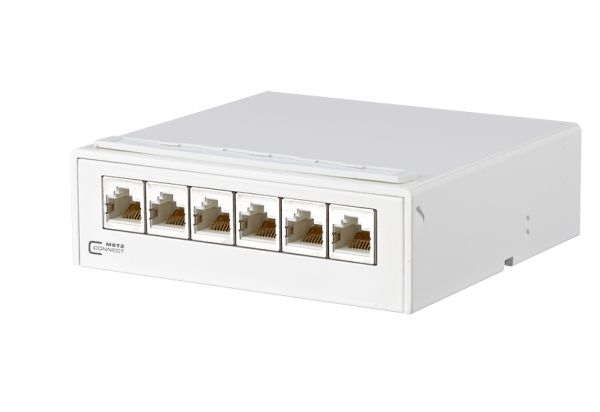

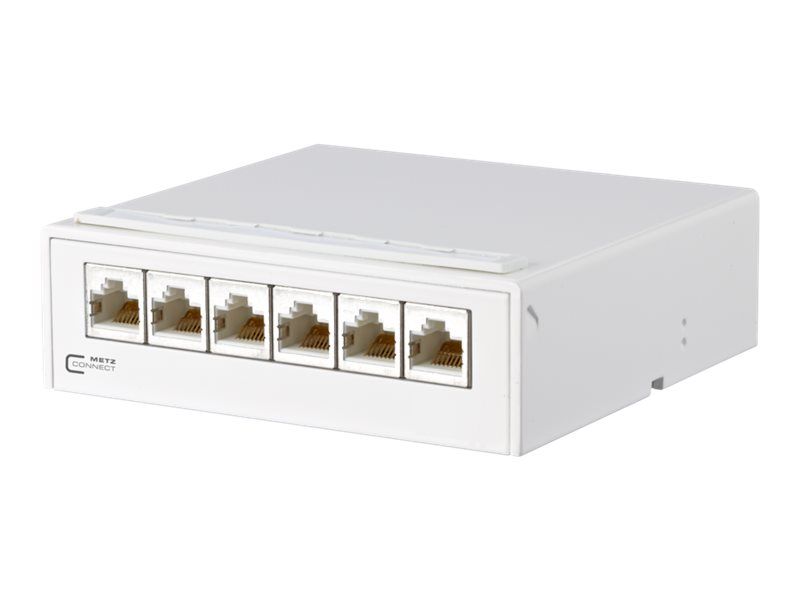

METZ CONNECT E-DAT koblingspanel
Produkttype
Koblingspanel - CAT 6a - RJ-45 X 6
Dimensjoner (BxDxH)
11.8 cm x 12.15 cm x 3.77 cm
Farge
Ren hvit
Antall porter
6 porter
Generelt
Produkttype
Koblingspanel - CAT 6a
Bredde
11.8 cm
Dybde
12.15 cm
Høyde
3.77 cm
Eksteriørfarge
Ren hvit
Kabler og ledninger
Antall porter
6 porter
Kopling medfølger
6 x RJ-45 hunn
Produktet har følgende varenummer i vårt system:
SKU:
130862-21C-E
EAN:
4250184118602
