Finder 40.31.7.012.0000
Varenr.: [4243110] | Producent: FINDER | Model-nr.: 40.31.7.012.0000 | EAN: 2050004844252
Fjernlager
Varen er på fjernlager, leveringstiden er 4-6 hverdager. Mere info
Leveringsalternativer - Velges i kassen
Instabox - Velg din nærmeste pakkeboks
59,00
Posten Norge – Leveres til pakkeboks nær deg
59,00
Posten Norge – Leveres på hentested nær deg
59,00
PorterBuddy - Fleksibel hjemlevering - levert på døren på kvelden
174,00
Posten Norge - Fleksibel hjemlevering - Levering til døren (om kvelden i større byer)
199,00
Vis alle leveringsalternativer (5)
Fraktprisen er basert på levering til dette postnummer:0015 - OSLO Skift postnummer
Oppgi postnummer for levering.
NOK
71,00
eksklusiv MVA 56,80
Totalt inkl. frakt
130,00
Legg til i liste
Denne funksjonen krever at man er logget inn. Opprett en bruker og liste systemet for å holde styr på fremtidige kjøp eller ønskelister.
Send på mail

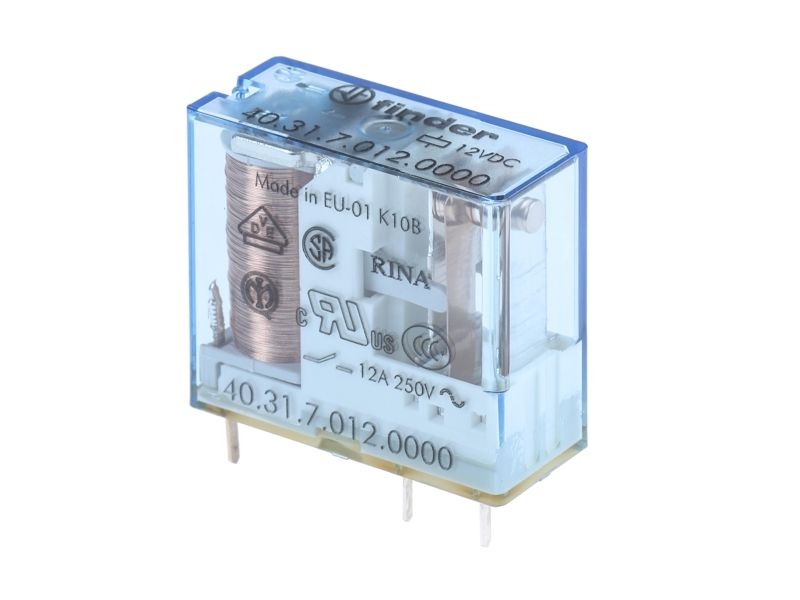

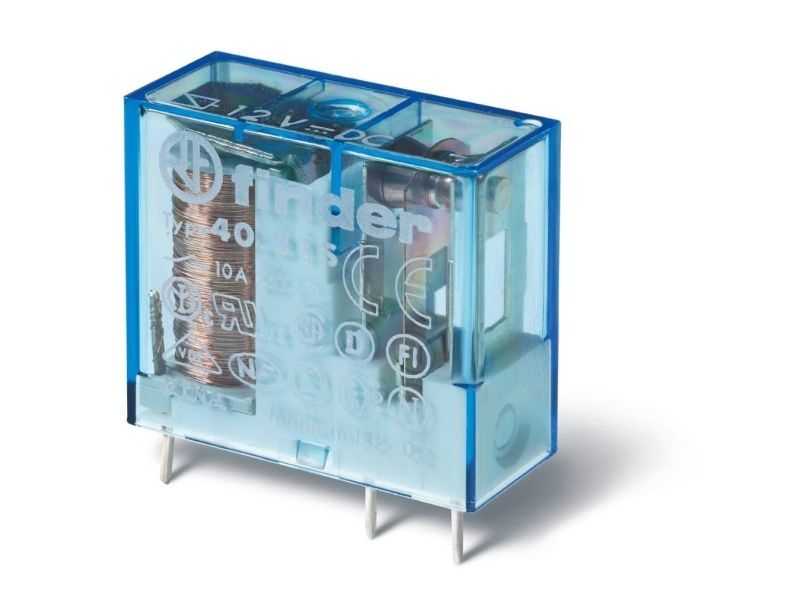

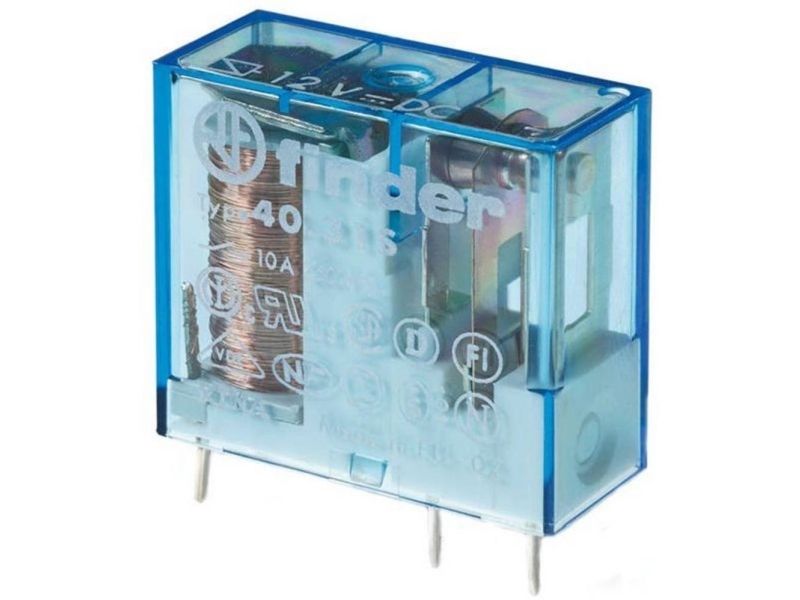

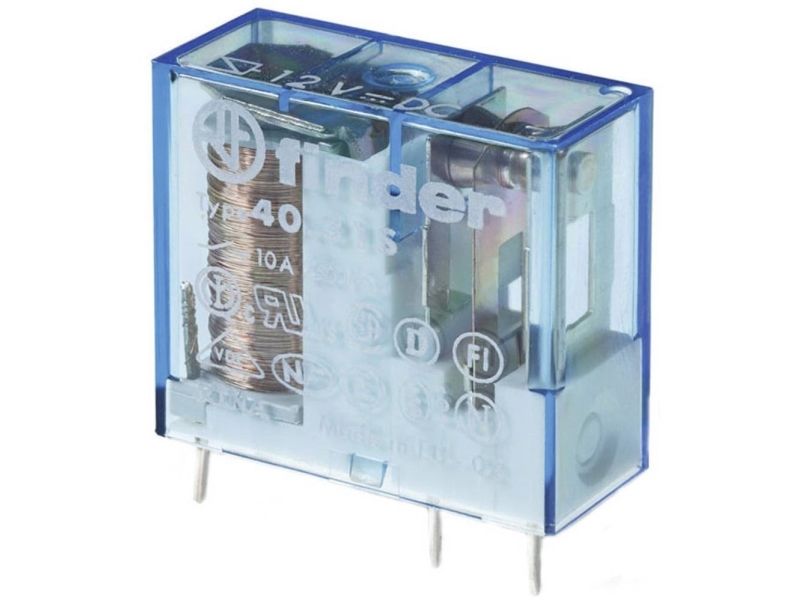

Finder SPDT Miniature PCB Relay
The Finder 40 series PCB mount non-latching relay has a contact configuration of SPDT. It is actuated with a 12VDC coil voltage and 10A switching current.
Features and Benefits
Insulation coil to contact is 6kV
Coil power is 500mW
Coil resistance is 300ohm
Pin pitch is 3.5mm
Pin length 3.5mm
Cadmium-free contact material
8mm creepage and clearance
Operating temperature ranging between -40°C and 85°C
Through hole terminal type
Applications
Automation for blinds, grilles and shutters
Door and gate openers
Electronic circuit boards
Medical and dentistry control panels
Panels for electrical distribution
Toys
Vending machines
Certifications
CSA certified
GOST approved
IMQ approved
RINA approved
SEV approved
UL approved
US approved
VDE approved
The Finder 40 series PCB mount non-latching relay has a contact configuration of SPDT. It is actuated with a 12VDC coil voltage and 10A switching current.
