TE-tilkobling AMPLIMITE HDEAMPLIMITE HDE 1-745495-8 AMP

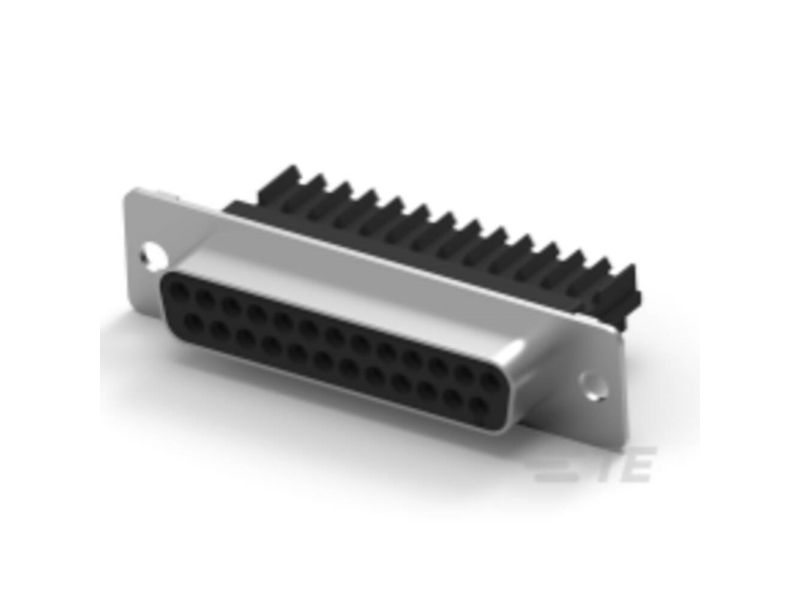

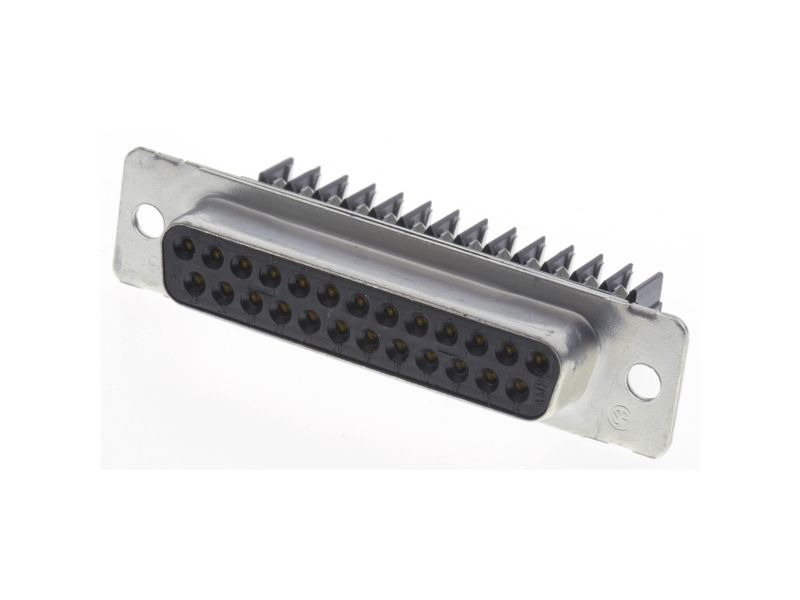

AMPLIMITE D-sub Connector, HDE-20 IDC Series, Metal Shell, Cable Mount
AMPLIMITE HDE-20 metal shell IDC d-sub connectors for discrete wire and jacketed cable. These HDE-20 IDC d-sub cable plug and socket connectors have a tin plated steel shell and a 94V-0 rated black thermoplastic insert and are pre-loaded with duplex plated phosphor bronze IDC contacts with gold on the mating end and tin on the crimping end. There are differing contact plating and wire size options for these HDE-20 IDC d-sub connectors, please refer to manufacturer datasheet for details. The maximum wire insulation thickness that these contacts accept is 0.38mm, and the maximum wire insulation diameter is 1.52mm. The HDE-20 series of IDC d-sub cable connectors will mate with the HDP and HD-20 board mount range of d-sub connectors
For suitable cable clamps or backshells please see stock numbers
450-9113
,
717-4596
and
680-9131
typically
For suitable female screwlocks and male screw retainers please see stock numbers
450-9258
,
717-4473
,
450-9208
and
717-4498
typically.
For locking post assembly see stock number
450-9365
For spring latch see stock number
450-9321
For latching blocks with threaded hole see
450-9371
and
717-4656
For latching blocks with slot recess and thru' hole see stock number
680-9392
For suitable tooling see pistol grip tool handle (stock number
120-4477
), pistol grip head (stock number
120-4483
) and T-handle insertion tool (stock number
536-9786
)
Approvals
UL E28476 UL E81956 CSA LR 16455
TE Connectivity AMPLIMITE D-Subminiature Connectors
