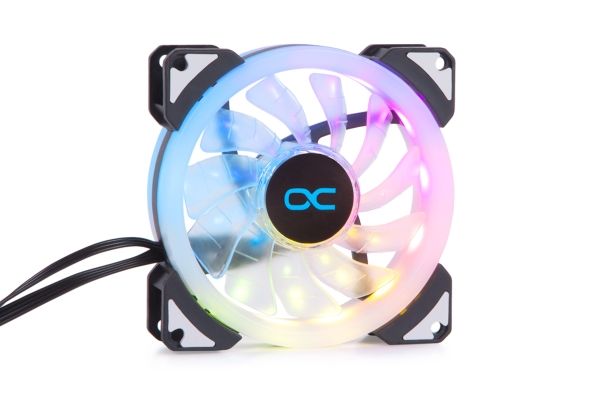

The Alphacool Eiszyklon fan is the ideal combination of silence and performance for a fan of its size. The airflow and high static pressure that is created in such a small space makes it the ideal fan for 92 mm radiators. The extensive Digital RGB lighting also provides the right mood in the system.

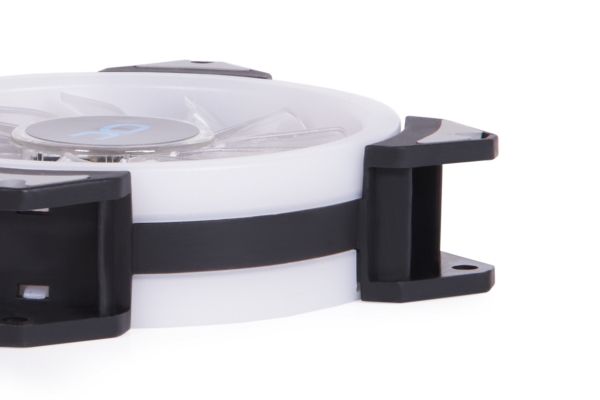

Wide Control Range and Silence With a fan speed of 600 - 1800 rpm, Alphacool Eiszyklon offers a very high control range and means it is also well suited for silent systems. The 11 fan blades with a steep angle of attack provide a high static pressure and are ideally suited for operation on radiators. Decouplers can also be found directly on the frame. The soft foam pads reduce the transmission of vibrations to the case.
Addressable Digital RGB Lighting The Alphacool Eiszyklon houses 12 Digital RGB LEDs. The entire fan frame serves as a diffuser, distributing the light evenly over the entire frame. This not only optimally illuminates the transparent fan blades, but also the fan's surroundings. This ensures a homogeneous illumination of the entire fan and surrounding areas.

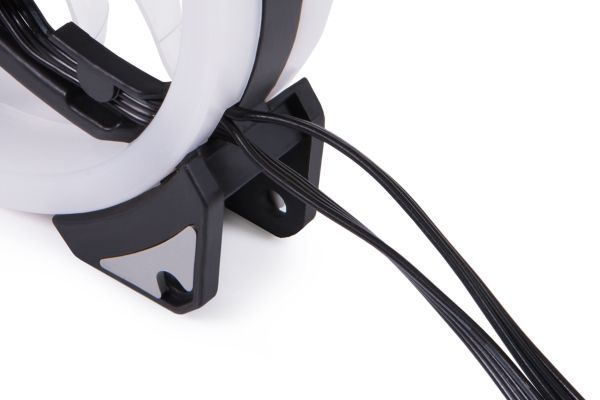

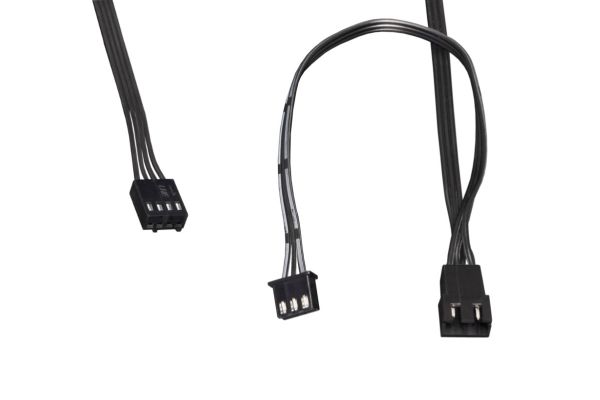

How is the fan controlled? The fan is controlled via a 4-pin PWM connector. The fan cable is 23cm long. The Digital RGB LED lighting is controlled via a JST 3-pin connector. The cable of the JST connector is 50cm long and has a splitter at the end, which makes it possible to connect other Digital RGB products with a JST connector in series. This helps to reduce cable chaos and allows you to control all products at the same time via one controller connector.
The Alphacool Aurora LUX fan is an all-around carefree package with perfect airflow and outstanding 5V Digital RGB LED lighting. And all functions can be controlled via just one cable on one controller. It could hardly be simpler.
Egnet plassering
Universell
Modell/Type
Vifte
Viftediameter
9,2 cm
Støttede prosessorkontakter
Støttes ikke
Kompatible prosessorserier
Støttes ikke
Rotasjonshastighet (min)
600 RPM
Rotasjonshasrighet (max)
1800 RPM
Støynivå (lav hastighet)
17,9 dB
Støynivå (høy hastighet)
32 dB
Luftstrøm
51 m³/t
Maksimalt lufttrykk
0,9 mmH2O
Pulsbreddemodulerings- støtte (PWM)
Ja
Lagertype
Hydraulisk
Antall per pakke
1 stykker
Gjennomsnittstid mellom feil (MTBF)
50000 timer
Produktfarge
Sort, Gjennomsiktig, Hvit
Antall vifter
1 vifter
Belysningsdiode
Ja
Belysningsfarge
Multi
Viftetilkobling
4-pin
Strømforbruk (vanlig bruk)
1,68 W
Nominell spenning
12 V
Viftedimensjoner (BxDxH)
92 x 92 x 25 mm
Viftevekt
94 g
Produktet har følgende varenummer i vårt system:
EAN:
4250197136181
SKU:
ALP-24814
